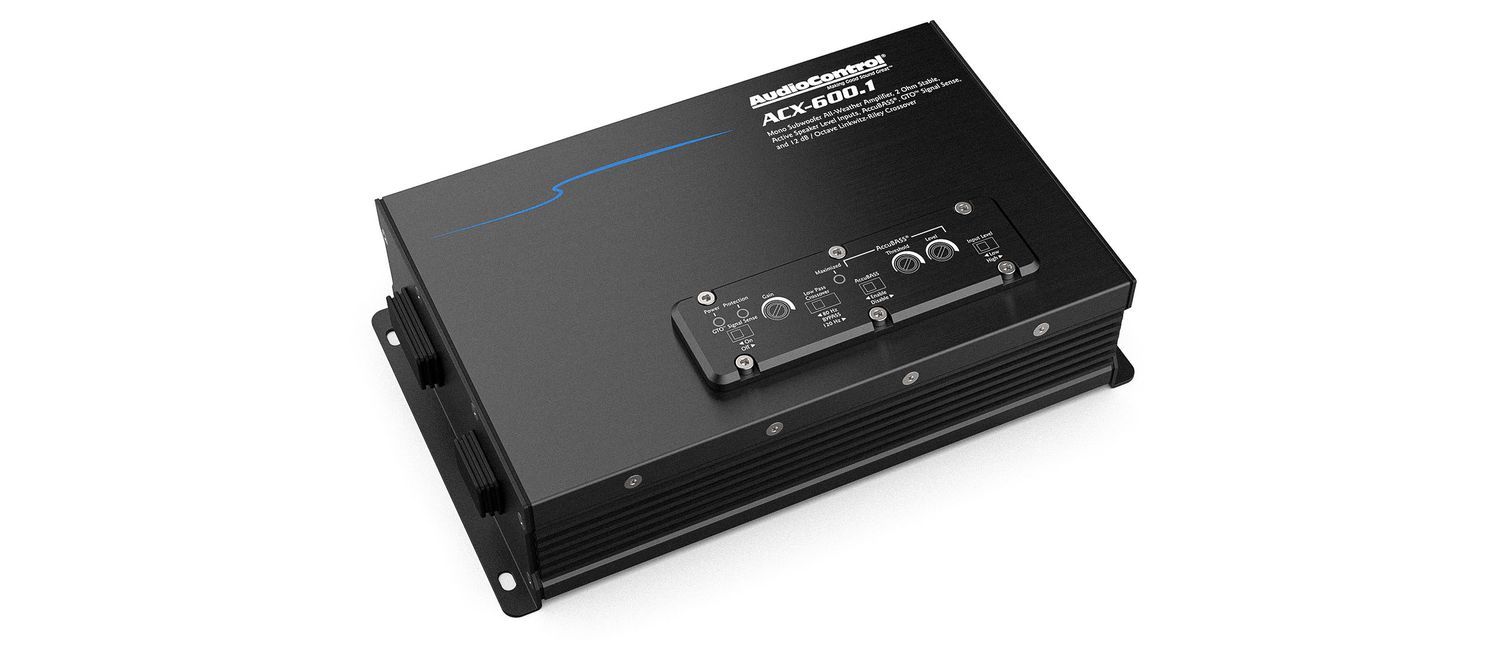

ACX-600.1

All Weather Monoblock Amplifier

AudioControl’s ACX-600.1 all-weather monoblock amplifier delivers honest power levels to the sound system in your boat, utv, motorcycle, and more. The ACX-600.1 will ensure your open-air speakers and subwoofers deliver plenty of punch and clarity, all day long. Installer-friendly, heavy gauge quick-connect wiring makes installation quick and painless, making the ACX-600.1 all-weather monoblock amplifier the perfect solution for your next adventure.

Features

• 1 x 350 watts @ 4 Ohms
• 1 x 600 Watts @ 2 Ohms
• IPX6 Rated
• GTOTM Signal Sense
• Optional wired ACR-1 Remote Control for Output Level
• High and low input modes
• Linkwitz-Riley Crossover
• Bulletproof 5 year warranty (when installed by an authorized AudioControl dealer)

Specifications

Inputs

• Preamp/Speaker Level Inputs: 2
• Input Voltage Low: 500 mV – 6 Vrms
• Input Voltage Range High: 1 Vrms – 12 Vrms

Outputs

• Rated Continuous (RMS) Power at 14.4V:
  • 4 Ω – 350 W x 1
  • 2 Ω – 600 W x 1

Performance

• Frequency Response: 26 Hz – 22 kHz
• Signal to Noise: 102 dBA, Ref 50 W @ 4 Ohm
• THD+N: < 0.05%
• Crossover: 12 dB/octave Linkwitz-Riley, 80 Hz, 120 Hz, Bypass
• IP Rating: IPX6

General

• Recommended Fuse Rating: 30A

Weights & Dimensions

• Dimensions: 8.89″W x 5.31″D x 2.36″H
• Weight: 4.45 lbs. (2.02 kg)
