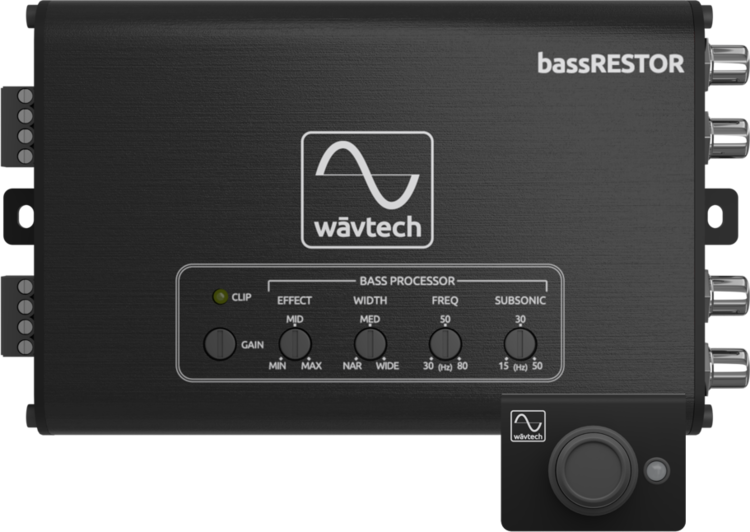

bassRESTOR

Bass Restoration Processor

There are certain types of music that just don’t have enough good, low bass. If you listen to classic rock, older hip-hop or Banda music, you know that something is missing. The bassRESTOR fills in the gaps and adds just the right amount of bass back into your music. Unlike similar products that require a full-range signal, the bassRESTOR only needs a lowpass signal to achieve the restoration process. This allows you to get signal from a factory subwoofer amplifier or the subwoofer output of an aftermarket source unit or other processor.

Our unique Multi-Function Remote Level Control (RLC) lets you adjust the overall bass volume, the amount of bass restoration effect needed for a particular song or defeat the effect completely when no restoration is required. The bassRESTOR has both speaker level and RCA inputs, so it integrates easily with factory or aftermarket sources. There is a variable frequency subsonic filter for fine system tuning.

bassRESTOR Features

• 2CH Bass Restoration Processor
  • Complete Tuning Control (Effect, Width, Freq)
  • Variable Subsonic Filter
• 2CH Line Driver or Line Output Converter
• Works with Low Pass or Full-Range Signal
• Includes Multi-Function Remote Level Control
• Differential Balanced Inputs
• Low Impedance Outputs
• Variable Gain Adjustment w/Clip LED
• Auto Turn-On via DC-Offset or Audio Signal Detect
• Generated +12V Remote Output
• OEM Load Detect Compatible
• Locking Detachable Power/Speaker Terminals
• Professional Grade Panel Mount RCA’s
• Compact Aluminum Chassis w/Detachable Mounting Tabs

bassRESTOR Specifications

• Output Voltage (Max) ----------- >10Vrms
• Output Impedance --------------- <50Ω
• Input Sensitivity
  • SPK ----------------------------- 2-20Vrms, 4-40Vrms
  • RCA ----------------------------- 0.5-5Vrms, 1-10Vrms
• Max Input Voltage (SPK) ------- 40Vrms
• Frequency Response ------------- 15Hz to >100kHz
• THD+N (SPK/RCA) ---------------- <0.05% / <0.1%
• S/N (SPK/RCA) --------------------- >115dBA / >114dBA
• Bass Restoration
  • Effect -------------------------- up to +18dB
  • Width -------------------------- Nar-Wide
  • Freq ---------------------------- 30-80Hz
• Subsonic Filter ---------------------- 15Hz-50Hz
• Turn-On Trigger -------------------- +12V, DC-offset & Audio Detect
• Generated +12V Output -------- >500mA
• Chassis Dimensions --------------- 1.1”x3.5”x5.2” (29x90x133mm)

User Manual: bassRESTOR
