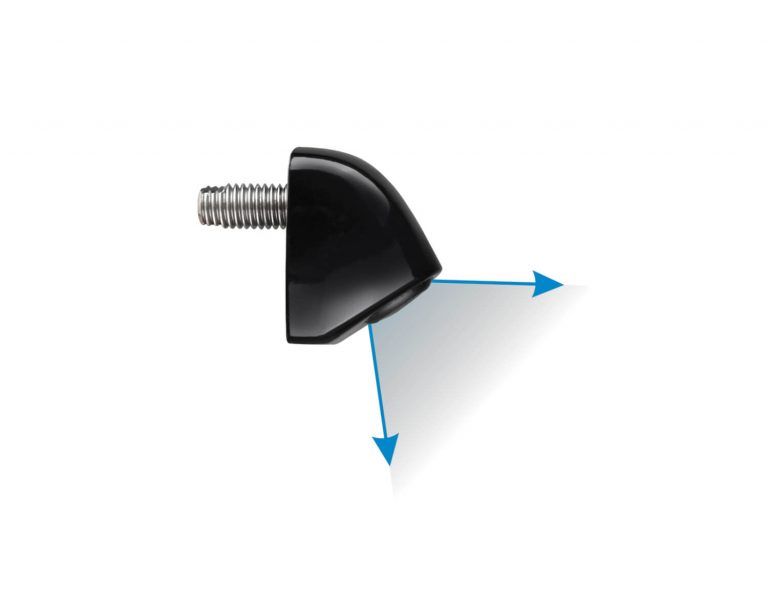

Dual Mounting Option Backup Camera

• For recessed area above a license plate
• Zinc Alloy Metal Housing
• Resolution (TV LINES): 960
• Minimum illumination: <0.1Lux
• Angle: 170°
• IP67 – IP68
• Image: Mirror / 90-degree angle selectable

The CM-DUO3 is a high quality back up camera with a CMOS HD sensor that displays high resolution video and work in night time visibility environments. The camera can be installed in two different positions, allowing for multiple vehicle compatibility. The high resolution video and wide angle lens ensures that if anything is behind your vehicle, you will see it before you start backing up.

The camera comes in a black, waterproof casing, has an advanced 1/3 CMOS Sensor, 170° viewing angle, and works in almost complete dark settings with night vision.

SPECIFICATIONS

• Sensor: 1/3 CMOS
• Resolution: 960(H) x 480(V)
• TV Line: 960
• Lens: 1.7mm
• Min illumination: 0.1 Lux
• Video system: NTSC (Color)
• Body color: Black (B)
• Waterproof: IP67 – IP68
• View angle: 170°
• Voltage & current consumption: Range of operational voltage: 9 ~ 16V; Max operational circuit: 90mA
• Operation temp.: -22º+158º
• Storage temp.: -40º~ +105º

IN THE BOX

• Rydeen Camera
• Power Wire Harness
• Owner’s Manual
• Warranty Card
