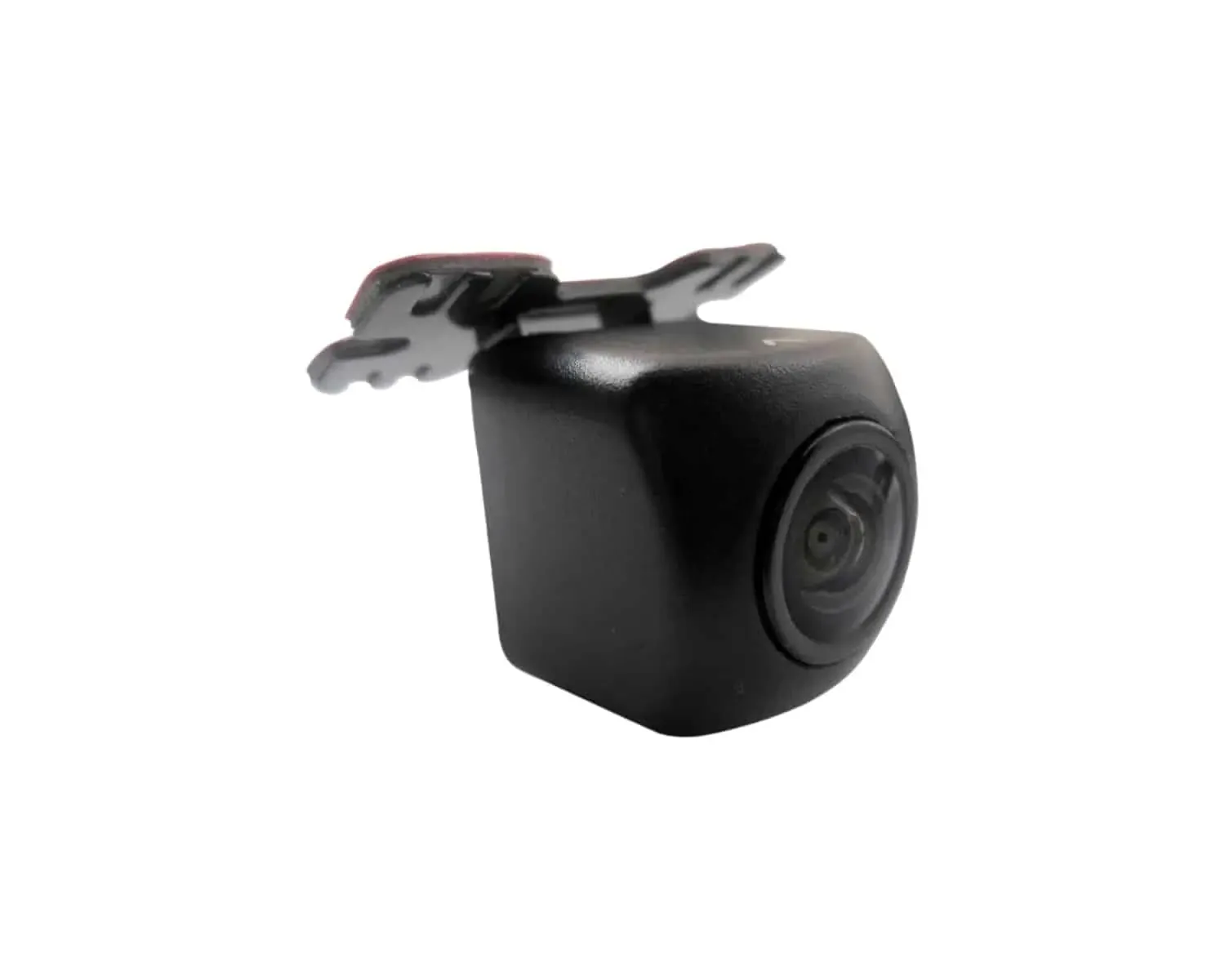

Universal MINy HD Camera

• MINy Camera with Ultra HD CMOS II Sensor with Night Vision Technology
• Engineered ABS Housing
• Quick Connect Wire Harness
• FMVSS 111 Compliant

The CM-HD5 is the latest in the line of MINy HD cameras released by Rydeen Mobile. The CM-HD5 is one of the best cameras on the market, and is versatile in that it can be used as a front camera or a rear camera on your vehicle. The HD camera gives you increased visibility with double the resolution of standard video. It features Switchable Parking Lines, CMOS Image Sensor, Night Time Visibility, a wing mount, and is designed to look OEM for your vehicle.

The camera can be mounted with double sided adhesive tape, or with short sheet metal screws for a more permanent position. Once the CM-HD5 is mounted it can be adjusted up to 90° for optimal viewing. The camera itself comes in a black, waterproof casing with an IP67 rating, 170° viewable angle, and a full color HD resolution display. This high-tech backup camera is a perfect choice for a vehicle where the visual addition doesn’t stand out too much.

It is engineered from ABS housing with ultrasonic sealing technology (no glue used) to ensure long life usage in an outside environment. Installation for recessed area above a license plate or front lip.

Quick Disconnect Wire Harness for ease of installation and maintenance (patent pending). Optional mounting methods available: License plate bracket BL01 and Jeep bracket JB01 (sold separately)

SPECIFICATIONS

• Resolution (TV LINES): 960
• Minimum illumination: 0.1 – 0.01 Lux
• Viewing Angle: 170o
• Operating Voltage: 9 – 16V
• Water-proof: IP67 – IP68
• Video System: NTSC (color)
• Image: Mirror / Standard Selectable
• Selectable Parking Line Display
• Body Color: Black (B)

WHAT'S IN THE BOX

• Rydeen Camera
• Power Wire Harness
• Owner’s Manual
• Warranty Card
