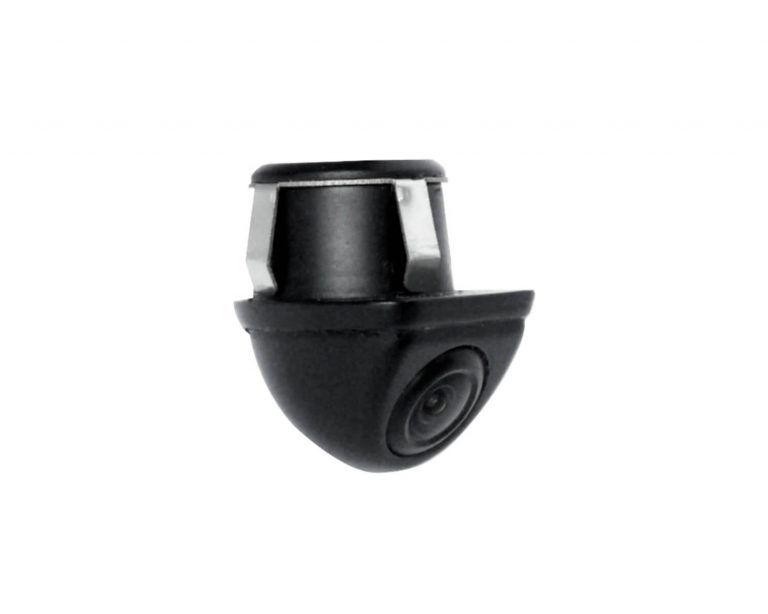

Backup / Forward Facing LIP Camera

• Surface Mount LIP Camera
• Resolution (TV LINES): 480
• Minimum illumination: <0.3Lux
• Angle: 170°
• Water-proof
• Image: Mirror/Standard, Parking Line On/Off Selectable

The CM-LIP4 is our newest additon to our OE Lip style camera line up. The small body allows for mounting to the front or rear of your vehicle, lens ensures clear visuals every time.

The case for the CM-LIP4 is a black, waterproof (IP67 – IP68) encasement, has a 170° viewing angle, and night vision technology built in. With the added bonus of easy mounting to either the front or rear of the vehicle, this rear backup or forward facing camera is a solid choice for almost any setup.

SPECIFICATIONS

• Sensor: 1/3 CMOS
• Resolution: 648(H) x 488(V)
• TV Line: 480
• Lens: 1.7mm
• Min illumination: 0.03 Lux
• Video system: NTSC (Color)
• Body color: Black (B)
• Waterproof: IP67
• View angle: 170°
• Voltage & current consumption: Range of operational voltage: 9 ~ 16V; Max operational circuit: 90mA
• Operation temp.: -22º+158º
• Storage temp.: -40º~ +105º

IN THE BOX

• Rydeen LIP Camera
• Power Wire Harness
• Owner’s Manual
• Warranty Card
