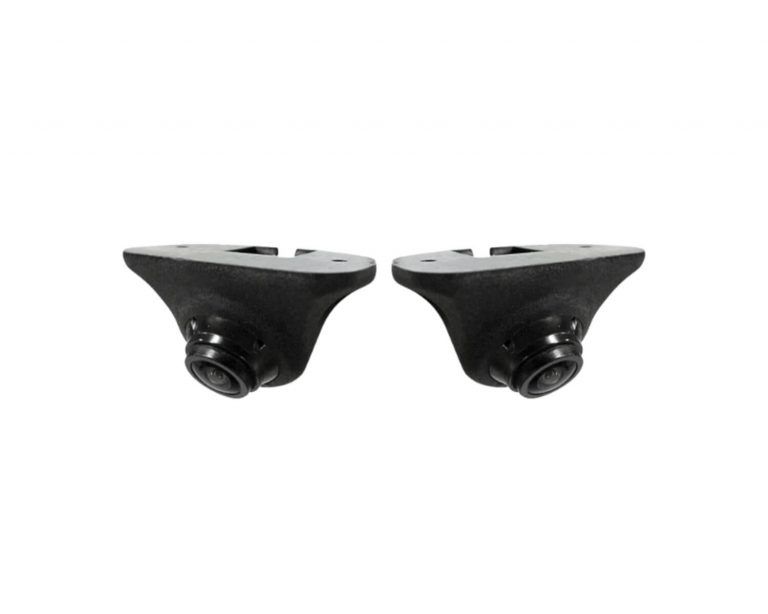

Dual Side View Blindspot Cameras

• Easy Mount Universal Cameras with HD CMOS IV Sensor
• Under Side Mirror Installation for Enabling to See Blindspots
• Resolution (TV LINES): 480
• Minimum illumination: <0.3Lux
• Angle: 170°
• IP67-IP68
• Turn Signal Trigger Module Included for 2 Cameras
• Dimensions: L(1.18) x W(0.75) x H(1.34) inches

The CM-D700 Dual Side View Blindspot Cameras are an upgraded version of our CM-D500 model. This camera kit comes with two cameras for both sides of your vehicle and comes with a number of features to help eliminate blindspot accidents and threats.

The CM-D700 mounts directly under your side mirrors, giving you perfect visual access to blindspots, and leaving your car free of unwanted external modifications on the body. The dual side blindspot cameras come in a water-proof housing, and work in almost black lighting, ensuring you can see in almost any situation needed. A standard color resolution output, partnered with a viewable angle of 170°, ensures that you get the best possible visual on your surroundings as well.

SPECIFICATIONS

• Sensor: 1/4 CMOS
• Resolution: 316(H) x 224(V)
• TV Line: 480
• Lens: 1.7mm
• Min illumination: <0.3 Lux
• Video system: NTSC (Color)
• Body color: Black (B)
• Waterproof: IP67 – IP68
• View angle: 170°
• Voltage & current consumption: Range of operational voltage: 9 ~ 16V; Max operational circuit: 90mA
• Operation temp.: -22º+149º
• Storage temp.: -40º~ +105º

IN THE BOX

• Rydeen Camera
• Power Wire Harness
• Owner’s Manual
• Warranty Card
