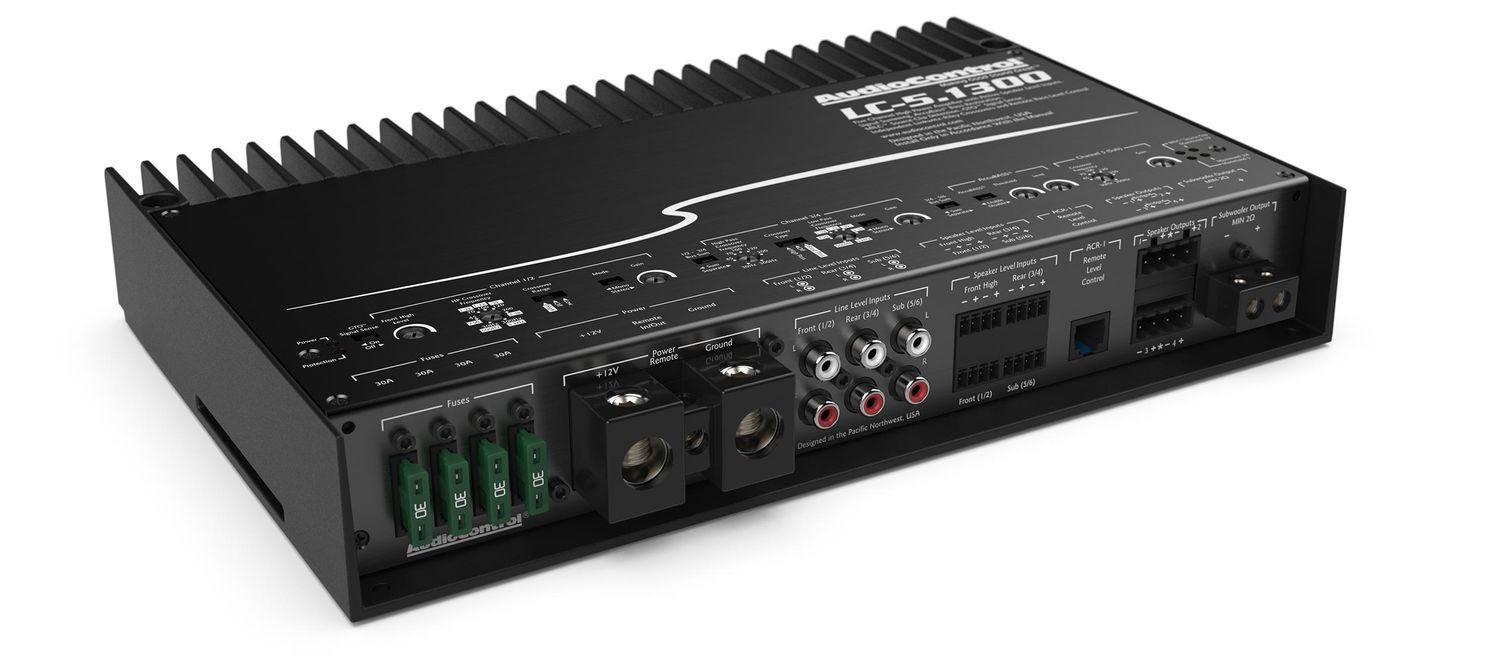

LC-5.1300

High-Power Multi-Channel Amplifier With AccubBass®

The LC-5.1300 brings five channels of sonic purity and unprecedented levels of power to a complete range of multi-channel and subwoofer amplifiers from AudioControl. Featuring eight active speaker level inputs, six line level inputs, the LC-5.1300 is packed with intuitive setup controls for high-pass, band-pass, and low-pass filters, automatic and selectable signal summing, and AccuBASS. Integrate seamlessly with your OEM or aftermarket sound system with this single-amp solution, which will transform your audio with impressive power levels delivered to your speakers and subs. Add the optional ACR-1 remote for level control.

Specifications

Inputs

• Preamp Inputs: 6 balanced
• Preamp Input Voltage Range: 500 mV – 6 Vrms
• Speaker Level Inputs: 8
• Speaker Level Input Voltage Range: 3 V – 40 Vrms

Outputs

• Rated Continuous (RMS) Power at 14.4V:
  • 4 Ω – 100 W x 4 + 300 W x 1
  • 2 Ω – 200 W x 4 + 500 W x 1
  • Bridged 4 Ω – 400 W

Performance

• Frequency Response: 20 Hz – 22 kHz
• Signal to Noise: 102 dBa, Ref 200 W @ 2 Ohm
• THD+N: < 0.1%
• Minimum Power / Ground Wire Gauge: 3 AWG wire
• Fuse Rating: 4 x 30 A
• Crossover: 3-way Linkwitz-Riley, Adjustable From 30 Hz – 5000 Hz

Weights & Dimensions

• Dimensions: 12.0″W x 8.0″D x 2.1″H
• Weight: 7.2lbs. (3.3kg)

IN THE BOX: LC-5.1300, Speaker Connectors, Fuses, Manual, Warranty
