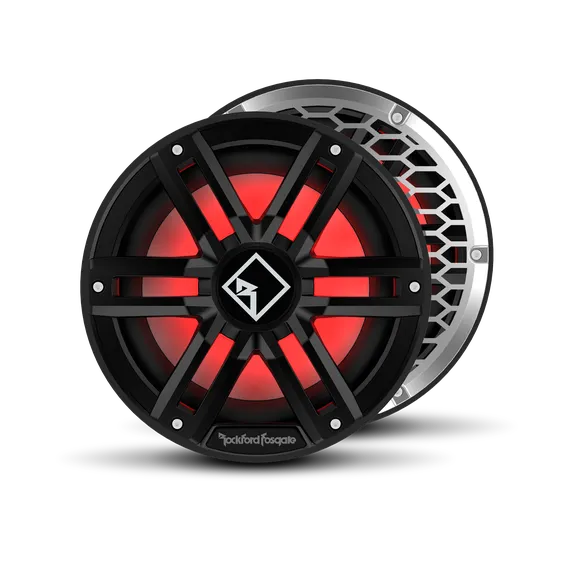

M2 10" DVC 2Ω Color Optix™ Sealed Enclosure Marine Subwoofer - Black
The M2D2-10SB is a 10” DVC 2-Ohm Color Optix™ subwoofer that connects with our Rockford Fosgate Color Optix™ controller and RF Connect™ App, allowing you to customize your own color patterns. Connectivity is handled through integrated Deutsch™/Amphenol™ connectors that make wiring simple and error proof. Wiring with the Versa Switch™ allows you to quickly configure the voice coil in series or parallel with flip of switch. This “S” model is optimized for small sealed enclosures where space is at a premium. Includes 2-piece grille with interchangeable colored plastic and stainless-steel insert.
The M2 series of Element Ready™ subwoofers are IP67 certified, making them truly purpose-built for marine and motorsport applications where protection from damaging UV rays and water spray is essential. They are designed to pair with the Rockford Fosgate Color Optix™ controller and RF Connect App through its Deutsch™ and Amphenol™ connectors integrated into the basket. To compliment the plug and play connectivity and streamline installation, M2 subwoofers are equipped with a Versa Switch™ to make changing impedance between 1 and 4 ohms as easy as flipping a switch. Matching the theme of your boat can be further customized by using the included color insert or stainless-steel grille for that sport look.
FEATURES AT A GLANCE
- Adjust color experience to suit your taste with Rockford Fosgate® Color Optix™ controller (optional)
- Integrated Deutsch™/Amphenol™ connectors make wiring connections simple and error proof
- Optimized for small sealed enclosures when there is very little space for an enclosure
- Element Ready™ design protects against outdoor exposure
- Industry’s first molded in-frame connectors for simple connectivity in addition to conventional spade terminals
- VERSA impedance switch quickly allows series or parallel configuration without additional wiring
- Ultra-bright wide-angle RGB LEDs provide rich, reliable illumination
- Deutsch™ connector front/rear silicone seal protects against water ingress
- VAST vertical attach surround technique increases effective radiating cone area up to 25%
- 100% UV Stable ASA plastic frame & grille design stands up to harsh marine environment
- IPX6 Marine Grade for prevention of water intrusion
- Provides superb low and midrange frequency reproduction with smooth high frequency roll-off
- 2-piece grille allows for interchangeable stainless-steel or "sport" option
- Gold plated Marine grade brass terminals provide a corrosion resistant connection
- Klippel Verified certification program delivers the best possible loudspeakers
- 2-Year Warranty
- Injection molded mineral filled polypropylene cone body with UV inhibitors
SPECIFICATIONS
|
Size
|
10"
|
|
Frequency Response
|
20 Hz - 750 Hz
|
|
Voice Coil Type
|
Dual Voice Coil
|
|
Nominal Impedance (Ohms)
|
1-Ohm or 4-Ohm Switchable
|
|
Power Handling (Watts RMS)
|
400 Watts RMS
|
|
Voice Coil Diameter
|
1.95" (49.53 mm) |
|
Magnet Weight (oz)
|
32.9 oz. (0.9 Kg) |
|
Fs (Hz)
|
28
|
|
Re (Ohms)
|
3.3
|
|
Le (mH)
|
3.43
|
|
Sd (cm2)
|
363
|
|
Qms
|
4.48
|
|
Qes
|
0.91
|
|
Qts
|
0.75
|
|
Vas
|
36.4
|
|
SPL (dB @ 1w/1m)
|
86
|
|
Xmax (mm)
|
12
|
|
Woofer Displacement
|
0.07 cu. ft. (2.03 Liters) |
|
Speaker Connector
|
2-pin Deutsch™ and 1/8" Spade |
|
Cutout Diameter
|
8.87 in. (225.3 mm)
|
|
Mounting Depth
|
4.24" (107.7 mm) |
| Sealed Box Volume (Vb | 0.5 cu. ft. (14 Liters) |
|
Shipping Weight
|
8.5 Lbs. (3.85 Kg) |
