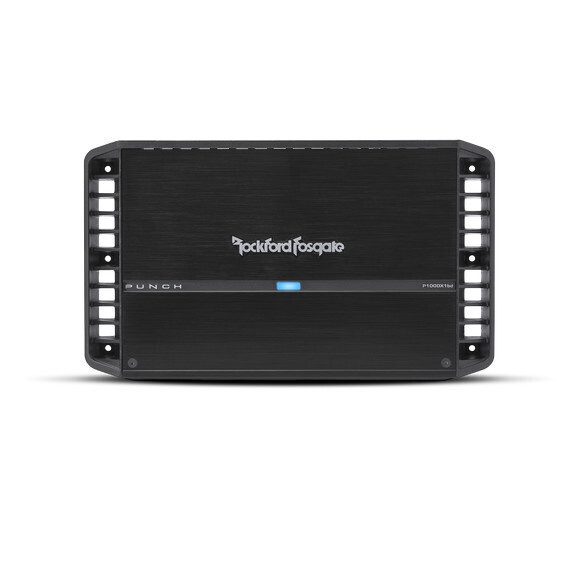

Punch 1,000 Watt Class-bd Mono Amplifier
P1000X1bd
The Punch P1000X1bd mono amplifier pumps out 1,000 Watts into a 1-Ohm load. The Class-BD technology produces bass more efficiently over traditional amps, and its frequency response is optimized for subwoofers.
With its super efficient Class-BD circuit topology, the P1000X1bd assures maximum BOOM for your buck! Due to its dedicated low frequency response, this amplifier is optimized for mid-bass speakers or subwoofers only. No need to worry because its 1-ohm capability will drive a pair of 4-ohm DVC subwoofers or quad-configuration of 2-ohm DVC subwoofers with ease.
FEATURES AT A GLANCE
- 12dB/octave Butterworth crossover
- High level input capable with Auto Turn-On circuit
- On-board Punch EQ with +18dB boost @ 45Hz
- RCA pass-thru outputs
- Features C.L.E.A.N. Set-up
- Optional remote Punch Level Control (PLC2) ready (w/ input clip indicator)
- Over current protection
- Cast aluminum heatsink
- Muted turn on
- Short circuit protection
- Stealth top mounted control panel
- Infrasonic filter
- 1 Year Warranty
SPECIFICATIONS
|
Cta-2006 Compliant
|
Remote Controls
|
Optional Punch Level Control (PLC2) Ready
|
|
|
Number of Channels
|
1
|
Visual Indicators
|
Power/Protect/Thermal LED
Input Clip LED3 Output Clip LED1,2,3 LED Color Legend: 1BLUE: <0.5% THD 2VIOLET: 1% THD 3RED: 10%+ THD |
|
Total Power
(Sum of Rated Power) |
1000 Watts |
PC5:D17ower Wire Gauge
|
4 AWG
|
|
Rated Power
(RMS Continuous Power) |
300 Watts x 1 @ 4-Ohm
500 Watts x 1 @ 2-Ohm 1000 Watts x 1 @ 1-Ohm |
Power Input Connector
|
Captive C-Clamp
|
|
Dynamic Power
(PVC/PowerCube®) |
491 Watts x 1 @ 4-Ohms
874 Watts x 1 @ 2-Ohms 1,430 Watts x 1 @ 1-Ohm |
Speaker Wire Gauge
|
8 AWG to 18 AWG
|
|
Bridgeable
|
No
|
Speaker Output Connector
|
Captive C-Clamp
|
|
Frequency Response
|
20 Hz - 250 Hz +/- 1.0dB
|
Cooling
|
Convection
|
|
Input Sensitivity
|
150 mV - 12 V
|
Heatsink
|
|
|
Circuit Topology Class
|
Class-BD
|
Operating Voltage
|
9 - 16 VDC
|
|
Efficiency (average)
|
86% @ 4-Ohm |
Recommended Fuse (not included)
|
120 A
|
|
Total Harmonic Distortion (THD+Noise)
|
4-Ohm: <1.0%
2-Ohm: <1.0% 1-Ohm: <1.0% |
Average Current Draw (13.8V Music)
|
65 A |
|
Signal Input
|
Hi/Low level: 1 RCA pair
|
Max. Current Draw (13.8V Sinewave)
|
130 A |
|
Signal Output
|
Hi/Low level: 1 RCA pair
|
Suggested Alternator
|
100 A |
|
Tone Controls
|
Punch EQ2 Bass: 0dB to +18dB @ 45Hz
|
Included In The Box
|
|
|
Crossover Controls
|
Low-Pass (LP): 50-250Hz @ 12dB/octave Butterworth
Infrasonic Filter (IF): 28Hz @ 12dB/Octave Butterworth All-Pass: No |
Dimensions (H x W x D)
|
2.38 x 7.76 x 13.28 (in)
6.05 x 19.71 x 33.73 (cm) |
|
Shipping Weight
|
12.9 Lbs. (5.85 Kg.) |
