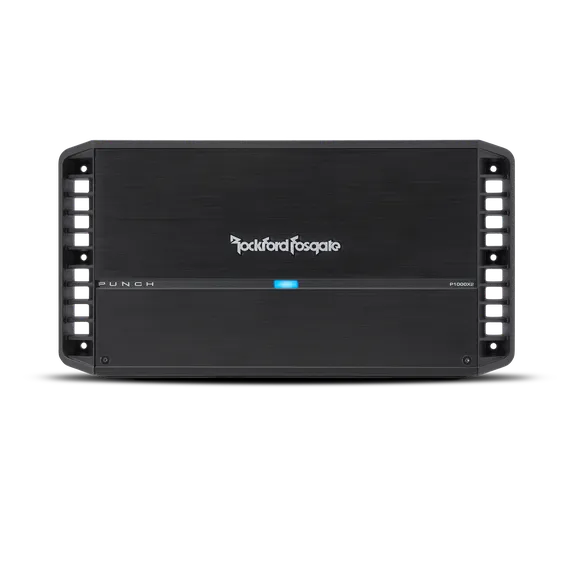

Punch 1,000 Watt 2-Channel Amplifier
The Punch P1000X2 is a 2-channel stereo amplifier capable of producing 500 Watts into each channel at 2-Ohms. The P1000X2 amplifier is great with full-range or component systems or can be bridged for use with several subwoofers.
The P1000X2 is an excellent way to PUNCH up your sound system without monopolizing your entire trunk - that way you have more room for subs! With its massive output stage, this amplifier is best suited for driving a pair of 8-ohm SVC subwoofers or four 2-ohm DVC subwoofers. Remember to utilize the recommended power and speaker cables to optimize power delivery.
FEATURES AT A GLANCE
- 12dB/octave Butterworth crossover
- Features C.L.E.A.N. Set-up
- High level input capable with Auto Turn-On circuit
- On-board Punch EQ with +18dB boost @ 45Hz
- Optional remote Punch Level Control (PLC2) ready (w/ input clip indicator)
- RCA pass-thru outputs
- Short circuit protection
- Over current protection
- Cast aluminum heatsink
- Muted turn on
- Stealth top mounted control panel
- 1 Year Warranty
SPECIFICATIONS
|
Cta-2006 Compliant
|
|
|
Number of Channels
|
2
|
|
Total Power
|
1000 Watts RMS
|
| (Sum of Rated Power) | |
|
Rated Power
|
300 Watts x 2 @ 4-Ohm
|
| (RMS Continuous Power) | 500 Watts x 2 @ 2-Ohm |
| 1000 Watts x 1 @ 4-Ohm Bridged | |
|
Dynamic Power
|
401 Watts x 2 @ 4-Ohms 0° Res
|
| (PVC/PowerCube®) | 656 Watts x 2 @ 2-Ohms 0° Res |
|
Bridgeable
|
Yes
|
|
Frequency Response
|
20Hz to 20kHz +/- 1.0dB
|
|
Input Sensitivity
|
150 mV - 12 V
|
|
Circuit Topology Class
|
Class A/B
|
|
Efficiency (average)
|
69% @ 4-Ohm
|
| 64% @ 2-Ohm | |
|
Total Harmonic Distortion (THD+Noise)
|
4-Ohm: <1.0%
|
|
|
2-Ohm: <1.0% |
|
Signal Input
|
Hi/Low level: 1 RCA pair
|
|
Signal Output
|
Low level: 1 RCA pair
|
|
Tone Controls
|
Punch EQ2 Bass: 0dB to +18dB @ 45Hz and/or
|
|
|
Punch EQ2 Treble: 0dB to +12dB @ 12.5kHz |
| Function depends upon LP/AP/HP switch position | |
|
|
High-Pass/Low-Pass (HP/LP): 50Hz-250Hz 12dB/octave Butterworth
|
|
Crossover Controls
|
High-Pass/Low-Pass (HP/LP): 50Hz-250Hz 12dB/octave Butterworth
|
|
Remote Controls
|
Optional Punch Level Control (PLC2) Ready
|
|
Visual Indicators
|
Power/Protect/Thermal LED
|
| Input Clip LED3 | |
| Output Clip LED1,2,3 | |
| LED Color Legend: | |
| 1BLUE: <0.5% THD | |
| 2VIOLET: 1% THD | |
| 3RED: 10%+ THD | |
|
Power Wire Gauge
|
4 AWG
|
|
Power Input Connector
|
Captive C-Clamp
|
|
Speaker Wire Gauge
|
8 AWG to 18 AWG
|
|
Speaker Output Connector
|
Captive C-Clamp
|
|
Cooling
|
Convection
|
|
Heatsink
|
|
|
Operating Voltage
|
9 - 16 VDC
|
|
Recommended Fuse
(not included)
|
140 A
|
|
Average Current Draw (13.8V Music)
|
70 A
|
|
Max. Current Draw (13.8V Sinewave)
|
140 A
|
|
Suggested Alternator
|
100 A
|
|
Included In The Box
|
|
|
Dimensions (H x W x D) |
2.38 x 7.76 x 15.03 (in)
|
| 6.05 x 19.71 x 38.18 (cm) | |
|
Shipping Weight
|
15 Lbs. (6.80 Kg.)
|
