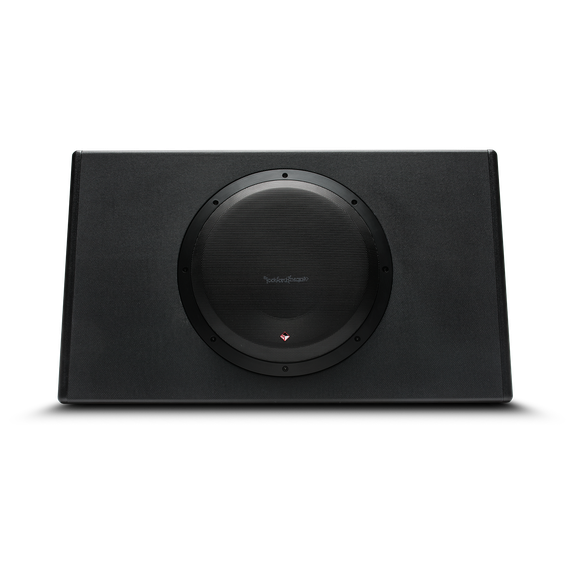

Punch 12" 300-Watt Powered Truck Enclosure
The Punch P300-12T is an "all in one" solution for dropping Bass in any factory or aftermarket system. This model features a 12" high output woofer with a 300-watt internal amplifier in a slim design enclosure that's great for universal truck applications. The enclosure features quick release input and power connectors for easy removal when extra space is required.
The Punch 300-12T is a self-contained subwoofer enclosure with built-in amplifier. This "all in one" solution is great for systems that need extra Punch on the low-end of the frequency spectrum. The 12" high output subwoofer is impedance optimized for the built in 300-watt class-D amplifier that features a low-pass crossover, bass EQ and phase switch. The enclosure can be connected via speaker level inputs for connection to factory systems, or traditional line level inputs for aftermarket systems. It also features an intelligent auto turn-of/off circuit that eliminates the need for a separate turn-on wire. The enclosure itself is precision designed and constructed using MDF (Medium Density Fiberboard) for the best acoustical properties and covered with heat activated vinyl finish to resist marks.
FEATURES AT A GLANCE
- Optimized 12" Low Impedance Woofer
- On Board Phase Switch
- Adjustable 12db/Octave low pass crossover
- Remote bass level control included
- Intelligent auto turn on/off function
- Robust Power/Ground connections
- 300 Watt Class-D Amplifier with Optimized "Closed Loop" Design
- Thermal and over/under voltage protection
- Separate low level and speaker level inputs
- On Board Adjustable Bass EQ
- Quick Input Connections for Easy Removal
- Precision Constructed MDF Enclosure with Heat Activated Vinyl Finish
- 1 Year Warranty
- Slim Design For Truck Applications
SPECIFICATIONS
| CEA-2031 Compliant | Remote Control | Punch Level Control (Included) Replacement Part: 1130-59232-01 |
|
| CEA-2006 Compliant | Auto Turn-On Selector | Remote Trigger DC Offset Sense Audio Sense |
|
| Frequency Response | 20 Hz to 200 Hz | Input Switch | High-Level (Speaker Line) Low-Level (RCA) |
| Woofer Quantity | 1 | Signal Input | Low/High-Level: 1 RCA Pair (L/R Summed) Replacement Part: 1130-59232-01 |
| Woofer Size | 12" | Input Sensitivity | Low-Level: 150 mV to 6 V High-Level: 300 mV to 12 V |
| Woofer Series | Proprietary | Input Impedance | 20k Ohms |
| Nominal Impedance | -- | Power Input Connector | Quick Disconnect Replacement Part: 1130-59232-01 |
| Power Handling (Watts RMS) |
300 Watts RMS | Power Wire Gauge | B+/GND: 8 AWG REM: 18 AWG |
| Enclosure Type | Sealed | Circuit Topology Class | Class-D |
| Enclosure Material | 5/8" MDF (Medium Density Fiberboard) | Heatsink Type | Extruded Aluminum |
| Speaker Connector | -- | Cooling | Convection |
| Integrated Amplifier | 300 Watts RMS |
Visual Indicators | Power/Protect LED |
| Crossover Controls | Variable 50 Hz to 200 Hz 12dB/Octave Butterworth |
Fuses | 20 Amp (2 x 10 Amp ATO Fuse) |
| Tone Controls | Bass Boost 0 dB to +12 dB |
Dimensions Box H x W x D Wedge H x W x D1 x D2 |
15" x 25.8" x 4.8" x 8.5" 380 mm x 656 mm x 122 mm x 215 mm |
| Phase Control | 0° to 180° | Shipping Weight | 32 Lbs. (14.5 kg) |
