P300X1
Product Details
UPC: 780687342265
Brand: ROCKFORD FOSGATE
Number of Channels: MONO
RMS Power: 201-300 WATTS RMS

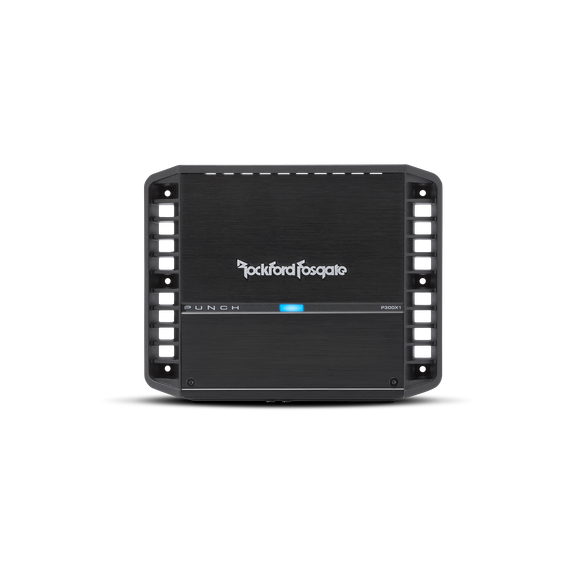

Punch 300 Watt Full-Range Mono AmplifierP300X1

The Punch P300X1 is a mono amplifier capable of producing 300 Watts into a 2-Ohm load. The P300X1 full-range frequency response makes it perfect for a subwoofer system or for powering a dedicated center channel speaker.

The P300X1 is perfect for use as a dedicated subwoofer or center channel amplifier. Regardless if you're driving multiple speakers or just one, the hefty 2-ohm capability will deliver the right amount of PUNCH that you want! Now, thanks to its small chassis design, it will also fit where traditional amplifiers cannot.

FEATURES AT A GLANCE

  • 12dB/octave Butterworth crossover
  • Features C.L.E.A.N. Set-up
  • High level input capable with Auto Turn-On circuit
  • On-board Punch EQ with +18dB boost @ 45Hz
  • Optional remote Punch Level Control (PLC2) ready (w/ input clip indicator)
  • RCA pass-thru outputs
  • Short circuit protection
  • Over current protection
  • Cast aluminum heatsink
  • Muted turn on
  • Stealth top mounted control panel
  • 1 Year Warranty

SPECIFICATIONS

Number of Channels 1 Remote Controls Optional Punch Level Control (PLC2) Ready
Total Power
(Sum of Rated Power)		 300 Watts Visual Indicators Power/Protect/Thermal LED
Input Clip LED3
Output Clip LED1,2,3

LED Color Legend:
1BLUE: <0.5% THD
2VIOLET: 1% THD
3RED: 10%+ THD
Rated Power
(RMS Continuous Power)		 200 Watts x 1 @ 4-Ohm
300 Watts x 1 @ 2-Ohm		 Power Wire Gauge 8 AWG to 4 AWG
Dynamic Power
(PVC/PowerCube®)		 260 Watts x 1 @ 4-Ohms 0° Res
444 Watts x 1 @ 2-Ohms 0° Res		 Power Input Connector Captive C-Clamp
Bridgeable No Speaker Wire Gauge 8 AWG to 18 AWG
Frequency Response 20Hz to 20kHz +/- 1.0dB Speaker Output Connector Captive C-Clamp
Input Sensitivity 150 mV - 12 V Cooling Convection
Circuit Topology Class Class A/B Heatsink
Efficiency (average) 74% @ 4-Ohm Operating Voltage 9 - 16 VDC
Total Harmonic Distortion (THD+Noise) 4-Ohm: <1.0%
2-Ohm: <1.0%		 Recommended Fuse
(not included)		 50 A
Signal Input Hi/Low level: 1 RCA pair Average Current Draw (13.8V Music) 23 A
Signal Output Low Level: 1 RCA Pair
 Max. Current Draw (13.8V Sinewave) 45 A
Tone Controls Punch EQ2 Bass: 0dB to +18dB @ 45Hz and/or
Punch EQ2 Treble: 0dB to +12.5dB @ 12kHz
Function depends upon LP/AP/HP switch position		 Suggested Alternator 75 A
Crossover Controls High-Pass: 50Hz-250Hz @ 12dB/octave Butterworth
Low-Pass: 50Hz-250Hz @ 12dB/octave Butterworth
All-Pass: Yes		 IDimensions (H x W x D) 2.38 x 7.76 x 9.86 (in)
6.05 x 19.71 x 25.04 (cm)
Shipping Weight 9.5 Lbs. (4.30 Kg.)
