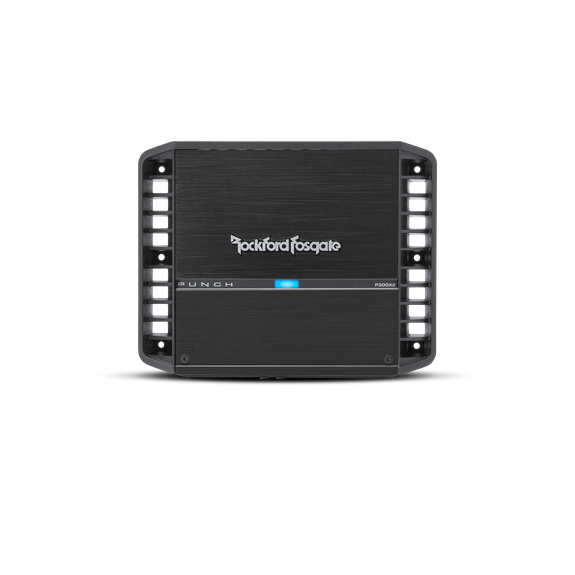

Punch 300 Watt 2-Channel Amplifier
P300X2
The Punch P300X2 is a 2-channel stereo amplifier capable of producing 150 Watts into each channel at 2-Ohms. The P300X2 amplifier is great with full-range or component systems and can be bridged for use with smaller subwoofers.
The P300X2 is a solid choice if you're looking to drive a pair of coaxial speakers, component speakers, or a single subwoofer. The amplifier can also be run in stereo/mono mode simultaneously when using passive crossovers (not supplied) on all speakers. With proven PUNCH technology, the P300X2 delivers real Rockford Fosgate power from a small design and is flexible to accommodate any moderately sized system.
FEATURES AT A GLANCE
- 12dB/octave Butterworth crossover
- Features C.L.E.A.N. Set-up
- High level input capable with Auto Turn-On circuit
- On-board Punch EQ with +18dB boost @ 45Hz
- Optional remote Punch Level Control (PLC2) ready (w/ input clip indicator)
- RCA pass-thru outputs
- Short circuit protection
- Over current protection
- Cast aluminum heatsink
- Muted turn on
- 1 Year Warranty
- Stealth top mounted control panel
SPECIFICATIONS
| Cta-2006 Compliant | Remote Controls | Optional Punch Level Control (PLC2) Ready | |
| Number of Channels | 2 | Visual Indicators | Power/Protect/Thermal LED Input Clip LED3 Output Clip LED1,2,3 LED Color Legend: 1BLUE: <0.5% THD 2VIOLET: 1% THD 3RED: 10%+ THD |
| Total Power (Sum of Rated Power) |
300 Watts | Power Wire Gauge | 8 AWG to 4 AWG |
| Rated Power (RMS Continuous Power) |
100 Watts x 2 @ 4-Ohm 150 Watts x 2 @ 2-Ohm 300 Watts x 1 @ 4-Ohm Bridged |
Power Input Connector | Captive C-Clamp |
| Dynamic Power (PVC/PowerCube®) |
122 Watts x 2 @ 4-Ohms 0° Res 215 Watts x 2 @ 2-Ohms 0° Res 435 Watts x 1 @ 4-Ohms Bridged 0° Res |
Speaker Wire Gauge | 8 AWG to 18 AWG |
| Bridgeable | Yes | Speaker Output Connector | Captive C-Clamp |
| Frequency Response | 20Hz-20kHz | Cooling | Convection |
| Input Sensitivity | 150 mV - 12 V | Heatsink | |
| Circuit Topology Class | Class A/B | Operating Voltage | 9 - 16 VDC |
| Efficiency (average) | 69% @ 4-Ohm | Recommended Fuse (not included) |
50 A |
| Total Harmonic Distortion (THD+Noise) |
4-Ohm: <1.0% 2-Ohm: <1.0% |
Average Current Draw (13.8V Music) | 23 A |
| Signal Input | Hi/Low Level: 1 RCA Pair | Max. Current Draw (13.8V Sinewave) | 45 A |
| Signal Output | Low Level: 1 RCA Pair | Suggested Alternator | 75 A |
| Tone Controls | 0dB to +14dB @ 12.5kHz 0dB to +18dB @ 45Hz |
Dimensions (H x W x D) |
2.38 x 7.76 x 9.86 (in) 6.05 x 19.71 x 25.04 (cm) |
| Crossover Controls | High-Pass: 50Hz - 250Hz @ 12dB/Octave Butterworth Low-Pass: 50Hz - 250Hz @ 12dB/Octave Butterworth All-Pass: Yes |
Shipping Weight |
9.5 Lbs. (4.3 Kg.) |
