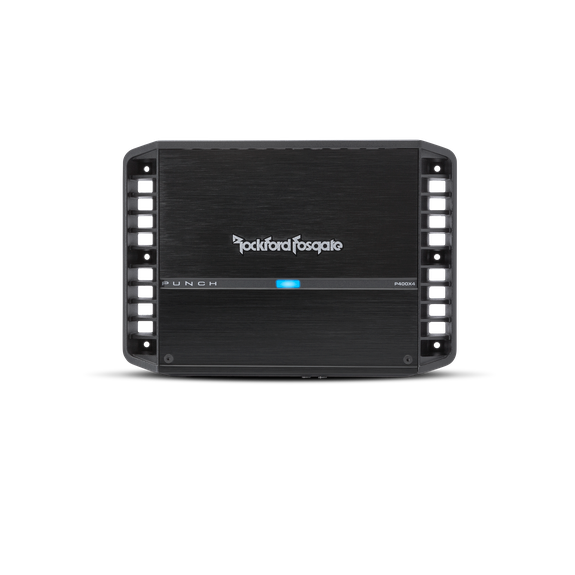

Punch 400 Watt 4-Channel Amplifier
P400X4
The Punch P400X4 is a 4-channel amplifier producing 100 Watts into all four channels at 2-Ohm. The P400X4 is perfect for a 4-way full-range system or a 3-way system having a front stage with subwoofers on the rear channels.
The P400X4 is perfect for 4-way front-stage/rear-fill or 3-way front-stage/subwoofer systems. Simply drop a pair of component speakers on the front channels and subs on the rear and BOOM - you got "The PUNCH." With its flexible design, the P400X4 is an excellent amplifier choice for virtually any vehicle.
FEATURES AT A GLANCE
- 12dB/octave Butterworth crossover
- High level input capable with Auto Turn-On circuit
- Features C.L.E.A.N. Set-up
- On-board Punch EQ with +18dB boost @ 45Hz
- Short circuit protection
- Over current protection
- Cast aluminum heatsink
- Muted turn on
- 1 Year Warranty
- Stealth top mounted control panel
SPECIFICATIONS
|
Cta-2006 Compliant
|
Remote Controls
|
||
|
Number of Channels
|
4
|
Visual Indicators
|
Power/Protect/Thermal LED
Input Clip LED3 Output Clip LED1,2,3 LED Color Legend: 1BLUE: <0.5% THD 2VIOLET: 1% THD 3RED: 10%+ THD |
|
Total Power
(Sum of Rated Power) |
400 Watts
|
PC5:D17ower Wire Gauge
|
8 AWG to 4 AWG
|
|
Rated Power
(RMS Continuous Power) |
50 Watts x 4 + 200 Watts x 1 @ 4Ω
100 Watts x 4 + 350 Watts x 1 @ 2Ω 200 Watts x 2 + N/A @ 4Ω Bridged/Mono |
Power Input Connector
|
Captive C-Clamp
|
|
Dynamic Power
(PVC/PowerCube®) |
70 Watts x 4 + 241 Watts x 1 @ 4Ω
114 Watts x 4 + 426 Watts x 1 @ 2Ω 234 Watts x 2 + N/A @ 4Ω Bridged/Mono |
Speaker Wire Gauge
|
8 AWG to 18 AWG
|
|
Bridgeable
|
Yes
|
Speaker Output Connector
|
Captive C-Clamp
|
|
Frequency Response
|
20 Hz - 20 kHz |
Cooling
|
Convection
|
|
Input Sensitivity
|
Low-Level: 150 mV - 4 V
High-Level: 450 mV - 12 |
Heatsink
|
|
|
Circuit Topology Class
|
Class-D
|
Operating Voltage
|
9 - 16 VDC
|
|
Efficiency (average)
|
Recommended Fuse (not included)
|
60 A
|
|
|
Total Harmonic Distortion (THD+Noise)
|
Front/Rear 4Ω: <1.0%
Front/Rear 2Ω: <1.0% Sub 4Ω: <1.0% Sub 2Ω: <1.0% |
Average Current Draw (13.8V Music)
|
30 A
|
|
Signal Input
|
Front Low-Level: 2 RCA
Front High-Level: 4-Pin Molex Rear Low-Level: 2 RCA Rear High-Level: 4-Pin Molex Sub Low-Level: 2 RCA Sub High-Level: 4-Pin Molex Input Switch: 2/4/5 Input (works for RCA/Hi-Level inputs) |
Max. Current Draw (13.8V Sinewave)
|
60 A
|
|
Signal Output
|
N/A
|
Suggested Alternator
|
75 A |
|
Tone Controls
|
0 to +18 dB @ 45 Hz
|
Included In The Box
|
|
|
Crossover Controls
|
Front High-Pass:
50 Hz - 250 Hz @ 12dB/Octave Butterworth Front Low-Pass: 50 Hz - 250 Hz @ 12dB/Octave Butterworth Rear High-Pass: 50 Hz - 250 Hz @ 12dB/Octave Butterworth Rear Low-Pass: 50 Hz - 250 Hz @ 12dB/Octave Butterworth Sub Low-Pass: 50 Hz - 250 Hz @ 12dB/Octave Butterworth Sub Infrasonic: 15 Hz - 40 Hz @ 12dB/Octave Butterworth |
Dimensions (H x W x D)
|
2.38 x 7.76 x 11.03 (in)
6.05 x 19.71 x 28.02 (cm) |
|
Shipping Weight
|
10.8 Lbs. (4.89 Kg.) |
