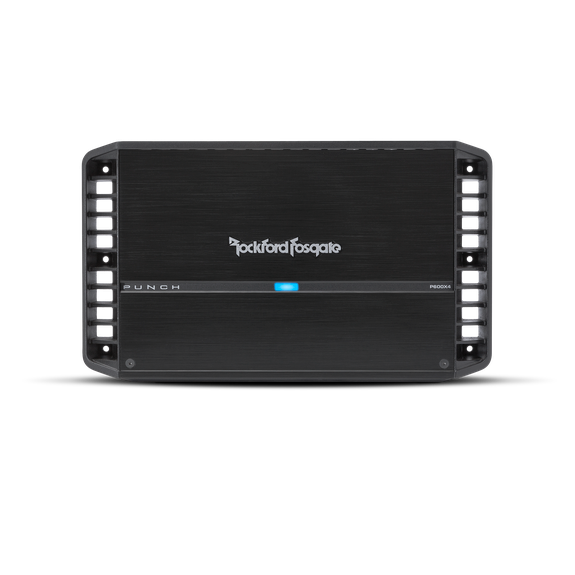

Punch 600 Watt 4-Channel Amplifier
P600X4
The Punch P600X4 is a 4-channel amplifier producing 150 Watts into all four channels at 2-Ohm. The P600X4 is perfect for a 4-way full-range system or a 3-way system having a front stage with subwoofers on the rear channels.
The Punch P600X4 multi-channel amplifier is versatile to power any audio system configuration. In addition to 4-channel stereo mode, you can bridge both channels to create a high power 2-channel amp, or run stereo speakers on the front with subwoofers on the rear in 3-channel mode. The variable HP/LP crossover and built-in Punch EQ allows for precise tuning of Bass frequencies and the Pass-Thru RCA jacks provide flexibility as your system grows and keeping Y-adapters to a minimum.
FEATURES AT A GLANCE
- 12dB/octave Butterworth crossover
- Features C.L.E.A.N. Set-up
- High level input capable with Auto Turn-On circuit
- On-board Punch EQ with +18dB boost @ 45Hz
- Optional remote Punch Level Control (PLC2) ready (w/ input clip indicator)
- RCA pass-thru outputs
- Short circuit protection
- Over current protection
- Cast aluminum heatsink
- Muted turn on
- Stealth top mounted control panel
- 1 Year Warranty
SPECIFICATIONS
|
Cta-2006 Compliant
|
Remote Controls
|
Optional Punch Level Control (PLC2) Ready | |
|
Number of Channels
|
4
|
Visual Indicators
|
Power/Protect/Thermal LED
Input Clip LED3 Output Clip LED1,2,3 LED Color Legend: 1BLUE: <0.5% THD 2VIOLET: 1% THD 3RED: 10%+ THD |
|
Total Power
(Sum of Rated Power) |
500 Watts
|
PC5:D17ower Wire Gauge
|
4 AWG
|
|
Rated Power
(RMS Continuous Power) |
75 Watts x 4 @ 4-Ohm
150 Watts x 4 @ 2-Ohm 300 Watts x 2 @ 4-Ohm Bridged |
Power Input Connector
|
Captive C-Clamp
|
|
Dynamic Power
(PVC/PowerCube®) |
129 Watts x 4 @ 4-Ohms 0° Res
211 Watts x 4 @ 2-Ohms 0° Res |
Speaker Wire Gauge
|
8 AWG to 18 AWG
|
|
Bridgeable
|
Yes
|
Speaker Output Connector
|
Captive C-Clamp
|
|
Frequency Response
|
20Hz to 20kHz +/- 1.0dB |
Cooling
|
Convection
|
|
Input Sensitivity
|
150 mV - 12 V
|
Heatsink
|
|
|
Circuit Topology Class
|
Class A/B
|
Operating Voltage
|
9 - 16 VDC
|
|
Efficiency (average)
|
68% @ 4-Ohm |
Recommended Fuse (not included)
|
100 A
|
|
Total Harmonic Distortion (THD+Noise)
|
4-Ohm: <1.0%
2-Ohm: <1.0% |
Average Current Draw (13.8V Music)
|
45 A
|
|
Signal Input
|
Hi/Low level: 2 RCA pair
|
Max. Current Draw (13.8V Sinewave)
|
90 A
|
|
Signal Output
|
Low level: 1 RCA pair
|
Suggested Alternator
|
75 A |
|
Tone Controls
|
Front Punch EQ2 Bass: 0dB to +18dB @ 45Hz and/or
Front Punch EQ2 Treble: 0dB to +12.5dB @ 12kHz Rear Punch EQ2 Bass: 0dB to +18dB @ 45Hz and/or Rear Punch EQ2 Treble: 0dB to +12.5dB @ 12kHz Function depends upon LP/AP/HP switch position |
Included In The Box
|
|
|
Crossover Controls
|
Front/Rear High-Pass (HP): 50Hz-250Hz @ 12dB/octave Butterworth
Front/Rear Low-Pass (HP): 50Hz-250Hz 12dB/octave Butterworth All-Pass: Yes |
Dimensions (H x W x D)
|
2.38 x 7.76 x 13.28 (in)
6.05 x 19.71 x 33.73 (cm) |
|
Shipping Weight
|
12.8 Lbs. (5.80 Kg.) |
