PBR300X1

$279.99

9 available

Quantity:

1

Save this product for later

Customer reviews

Reviews only from verified customers

No reviews yet. You can buy this product and be the first to leave a review.

PBR300X1

Product Details

UPC: 780687333096

Brand: ROCKFORD FOSGATE

Number of Channels: MONO

RMS Power: 201-300 WATTS RMS

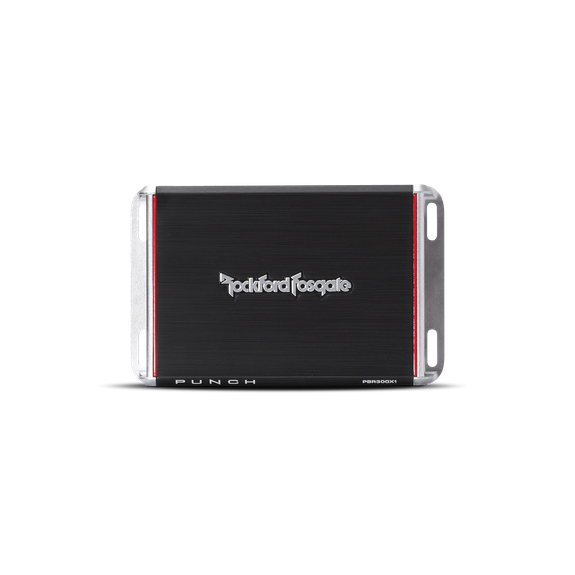

Punch 300 Watt Mono AmplifierPBR300X1

The Punch PBR300X1 is a 300 Watt mono car audio amplifier designed for compact subwoofer systems. This efficient amp packs a Punch in truck, sub-compact, electric, and hybrid vehicles without sucking a lot of juice from your electrical system.

The PBR300X1 is a mono car audio amplifier designed for a subwoofer system that requires little space. The BRT (Boosted Rail Technology) is an ultra efficient design that doesn't even use a switching power supply to generate its 300 Watts of power! The BRT also has a variable hi-level DC offset turn-on circuit for easy installation into any OEM system.

See our Element Ready™ amplifiers designed specifically for Motorsports and Motorcycle applications.

FEATURES AT A GLANCE

Ultra compact chassis
12dB/octave Butterworth crossover
High level inputs
MOSFET output stage
Variable 4-6 volt hi level DC offset voltage input turn-on control
1 Year Warranty

SPECIFICATIONS

Cta-2006 Compliant		Remote Controls	Optional PEQ provides 0dB to +18dB @ 45Hz
Number of Channels	1	Visual Indicators	Power/Protect, BRT (Boost)
Total Power (Sum of Rated Power)	300 Watts	Power Wire Gauge	10 AWG
Rated Power (RMS Continuous Power)	75 Watts x 1 @ 4-Ohm 150 Watts x 1 @ 2-Ohm 300 Watts x 1 @ 1-Ohm	Power Input Connector	Detachable Compression Terminal
Dynamic Power (PVC/PowerCube®)	96 Watts x 1 @ 4-Ohm 189 Watts x 1 @ 2-Ohm 326 Watts x 1 @ 1-Ohm	Speaker Wire Gauge	16 AWG
Bridgeable	No	Speaker Output Connector	4-Pin Harness Wiring Convenience: 2 Negative Terminals (-) 2 Positive Terminals (+)
Frequency Response	20Hz - 250Hz +/-3dB	Cooling	Convection
Input Sensitivity	Low-Level: 150 mV - 4 V High-Level: 400 mV - 11 V	Heatsink
Circuit Topology Class	Class BR	Operating Voltage	9 - 16 VDC
Efficiency (average)	75% @ 4-Ohm 75% @ 2-Ohm 75% @ 1-Ohm	Recommended Fuse (not included)	30 A
Total Harmonic Distortion (THD+Noise)	4-Ohm: <1.0% 2-Ohm: <1.0%	Average Current Draw (13.8V Music)	15 A
Signal Input	High/Low Input Switch High/Low Level Input: 4-Pin harness Hi-Level Sensitivity: Variable DC offset sensitivity	Max. Current Draw (13.8V Sinewave)	30 A
Tone Controls	External via Optional Punch EQ	Suggested Alternator	75 A
Crossover Controls	Low-Pass: 35Hz - 250Hz @ 12dB/Octave Butterworth	Dimensions (H x W x D)	1.53 x 4.25 x 6.75 (in.) 3.90 x 10.8 x 17.2 (cm)
		Shipping Weight	2.76 Lbs. (1.25 Kg.)
