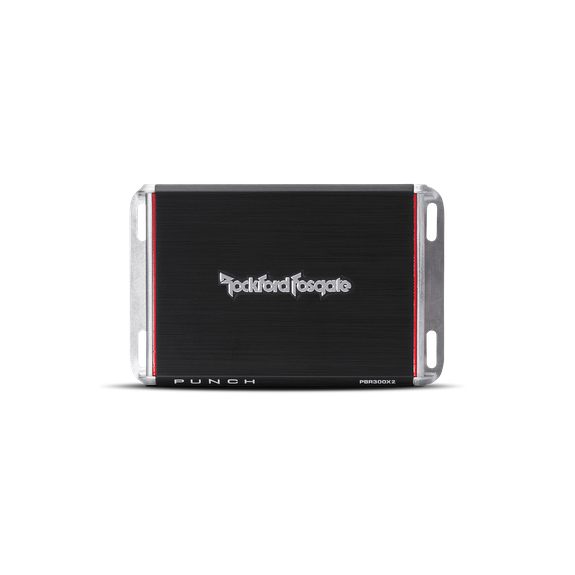

Punch 300 Watt 2-Channel Amplifier
PBR300X2
The PBR300X2 is a 300 Watt car audio amplifier with Boosted Rail Technology, allowing it to be compact and efficient while providing big power. This efficient amp packs a Punch in truck, sub-compact, electric, and hybrid vehicles without sucking a lot of juice from your electrical system.
See our Element Ready™ amplifiers designed specifically for Motorsports and Motorcycle applications.
The Punch PBR300X2 uses our patented BRT (Boosted Rail Technology) for an ultra efficient design that does not use a switching power supply to generate its rated power. This allows the chassis design to be much smaller than traditional sized amplifiers. The BRT also has a variable hi-level DC offset turn-on circuit for easy installation into any OEM system.
FEATURES AT A GLANCE
- Ultra compact chassis
- Variable 4-6 volt hi level DC offset voltage input turn-on control
- High level inputs
- MOSFET output stage
- 12dB/octave Butterworth crossover
- 1 Year Warranty
SPECIFICATIONS
| Cta-2006 Compliant | Remote Controls | Optional PEQ provides 0dB to +18dB @ 45Hz | |
| Number of Channels | 2 | Visual Indicators | Power/Protect, BRT (Boost) |
| Total Power (Sum of Rated Power) |
300 Watts | Power Wire Gauge | 10 AWG |
| Rated Power (RMS Continuous Power) |
100 Watts x 2 @ 4-Ohm 150 Watts x 2 @ 2-Ohm 300 Watts x 1 @ 4-Ohm Bridged |
Power Input Connector | Detachable Compression Terminal |
| Dynamic Power (PVC/PowerCube®) |
114 Watts x 2 @ 4-Ohm 160 Watts x 2 @ 2-Ohm 387 Watts x 1 @ 4-Ohm Bridged |
Speaker Wire Gauge | 16 AWG |
| Bridgeable | Yes |
Speaker Output Connector | 4-Pin Harness |
| Frequency Response | 20Hz - 20kHz +/-3dB |
Cooling | Convection |
| Input Sensitivity | 150 mV - 11 V |
Heatsink | |
| Circuit Topology Class | Class BR | Operating Voltage | 9 - 16 VDC |
| Efficiency (average) | 68% @ 4-Ohm | Recommended Fuse (not included) |
50 A |
| Total Harmonic Distortion (THD+Noise) |
4-Ohm: <1.0% 2-Ohm: <1.0% |
Average Current Draw (13.8V Music) | 23 A |
| Signal Input | High/Low Level Input: 4-Pin harness Hi-Level Sensitivity: Variable DC offset sensitivity |
Max. Current Draw (13.8V Sinewave) | 45 A |
| Signal Output | Suggested Alternator | 75 A |
|
| Tone Controls | Optional Remote Punch EQ | Dimensions (H x W x D) | 1.53 x 4.25 x 6.75 (in.) 3.90 x 10.8 x 17.2 (cm) |
| Crossover Controls | High-Pass: 50Hz - 500Hz @ 12dB/Octave Butterworth Low-Pass: 50Hz - 500Hz @ 12dB/Octave Butterworth All-Pass: Yes |
Shipping Weight | 2.8 Lbs. (1.27 Kg.) |
