PMX-1
Product Details
UPC: 780687351762
Brand: ROCKFORD FOSGATE
Category : MARINE HEADUNITS

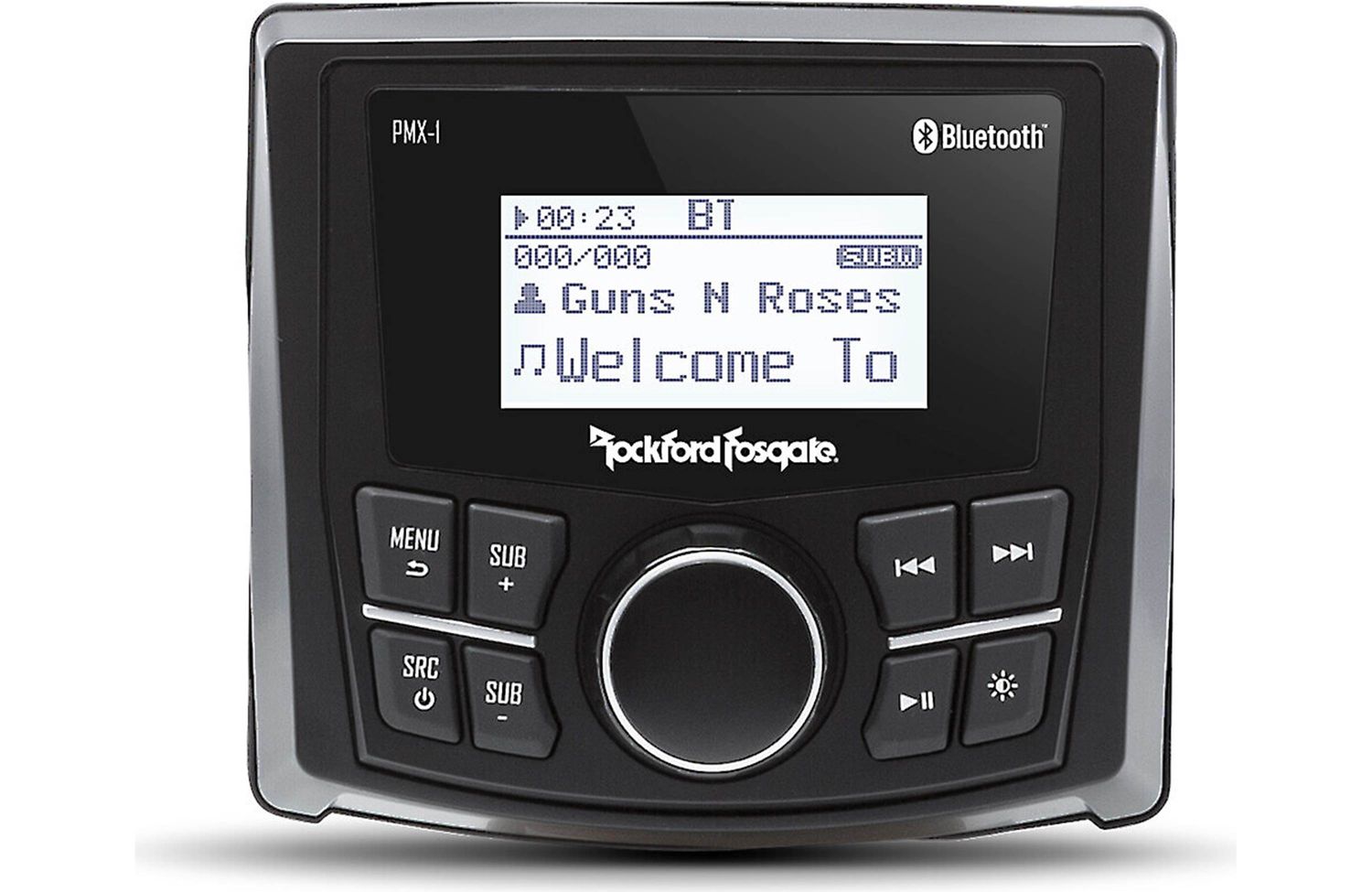

Punch Marine Grade Media Receiver with 2.3" Dot Matrix Display

The PMX-1 features a scratch resistant wet bonded display, superior Bluetooth® audio, AUX and USB inputs. The Element Ready™ design also provides protection against water, dust, and UV rays.

The PMX-1 features a 9H tempered glass screen optically bonded which allows for optimized viewing of the dot matrix display under all lighting and viewing conditions. The superior Bluetooth® audio features A2DP and AVRCP for better range, easier device pairing and glitch free wireless audio streaming. The flexible AUX and USB inputs enable convenient access to various audio playback formats and charging of your mobile devices.

FEATURES AT A GLANCE

  • Wet bonded 2.3" Full Dot Matrix LCD Display
  • Compatible with PMX-BTUR Steering Wheel Remote
  • Independent Subwoofer Level Control
  • 9H Tempered Glass Screen
  • A2DP and AVRCP Bluetooth® Wireless Streaming
  • FCC, CE and EN60945 Certified
  • Multi-region radio frequencies
  • IP6 Marine Grade Front Panel
  • Voltage gauge with Low voltage Warning
  • AM/FM/WB Tuner
  • Selectable HP / LP / AP Crossovers with Selectable Slope 12 / 24 dB/Oct
  • AUX and USB Inputs with USB Charging
  • 2-Year Warranty
  • 7-Band Graphic EQ + PEQ


SPECIFICATIONS

Multi-Zone/Multi-Source
No
Output Impedance
<500 Ω
Device Type
Digital-Media Receiver
MIn. Speaker Impedance
2Ω
Speaker Outputs
Yes
Media Formats
MP3
Pandora® Internet Radio
No
WMA
Steering Wheel Control Ready
No
Max Output Voltage
RCA Front: 2 V
AUX Input
Yes (1 RCA pair)
RCA Rear/Sub: 2 V
SiriusXM-Ready®
No
Signal to Noise Ratio
RCA 2V: >85 dB

High-Level CEA-2006: >75 dB

High-Level Max Watts: >85 dB
Clock
No Compatible Remotes N/A
Bluetooth®

Yes

3.0+EDR, A2DP 1.3
USB Charging
Yes
Channel Separation
RCA: >70 dB
AM Tuner
Range: 530 - 1710 kHz
High-Level: >50 dB
Sensitivity: 40 dB
Max THD+N
High-Level: <1.0 @ 4-Ohm
Frequency Response: 45 to 2.4 KHz
USB Output Current
1A
TUNER
18 FM / 12 AM / 6 WB
Operating Voltage
9 - 16 VDC
Number Of Presets
USB Version
2
Frequency Response
RCA: 20 Hz - 20 kHz
Idle Current
<2 A
High-Level: 20 Hz - 20 kHz
Fuse Rating
20 A
Power Output (max)
CEA-2006 Power Rating
Dimensions
Width: 4.5" (11.5 cm)
25W x 4 @ 4Ω RMS Face Depth: 1.5" (3.8 cm)
50W x 4 @ 2Ω MAX Mount Depth: 2.9" (7.4 cm)
≤1.0% THD+N Height: 4.2 (10.6 cm)
FM Tuner
Range: 87.9 - 107.9 MHz
Shipping Weight
1.22 Lbs. (0.55 Kg)
Sensitivity: 8 dB
Back Panel Cutout
3" (77 mm)
Frequency Response. 20 - 15 KHz
