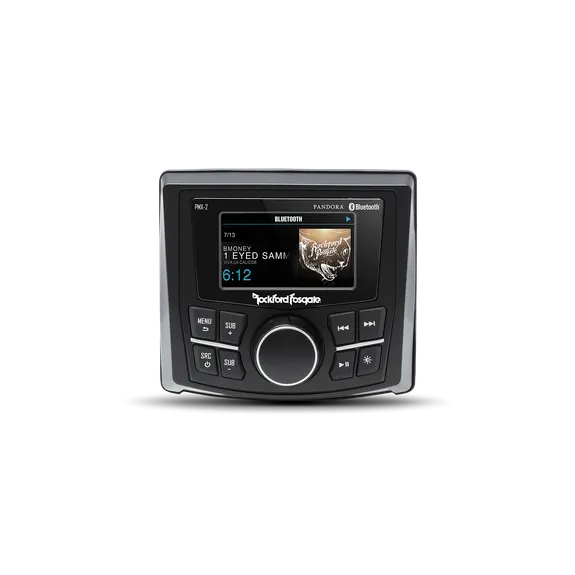

Punch Marine Compact AM/FM/WB Digital Media Receiver 2.7" DisplayPMX-2
The PMX-2 is an AM/FM/WB tuner and compact digital media receiver with a 2.7" full color display.
The PMX-2 compact digital media receiver is designed for marine and motorsports applications.
The PMX-2 features a 2.7"full color TFT display for optimum viewing - even in full sun - that is optically wet bonded to prevent any dust or moisture penetration. It is IPX6 rated and uses a water resistant rotary encoder knob with white LED button illumination and front mounted sub level controls. Additionally, with features such Pandora control capabilities and Bluetooth audio steaming with album art support1 this unit becomes a true command center of any system. 1Android devices equipped with limited functionality. Please refer to owners manual for details.
Output flexibility comes with a 4x50W @ 2ohm internal amplifier or front and rear/sub output RCA's allowing the addition of after-market amplifiers for more power and output. Add-in the EEPROM memory system, custom GUI interface, and wired remote expansion capabilities and you have the only media receiver you'll ever need.
FEATURES AT A GLANCE
- Pandora Internet Radio
- ISO8846/SAE J1171 Ignition Protection Certified
- A2DP and AVRCP Bluetooth Wireless Streaming
- AUX and USB Inputs with USB Charging
- FCC, CE, IC, and C-Tick Certified
- Selectable HP / LP / AP Crossovers with Selectable Slope 12 / 24 dB/Oct
- IPX6 Marine Grade for prevention of water intrusion
- 7-Band Graphic EQ
- AM/FM/WB Tuner
- Independent Subwoofer Level Control
- iPod playback with on-screen display
- Low Voltage Warning Alert
- Multi-region radio frequencies
- 2-Year Warranty
- On Board Punch EQ Control
- 2.7" full color display w/ auto dimming backlightning
- Zone Control: 1 Zone / 1 Source (F/R or Sub)
- *Antenna not included
Made for iPod/iPhone
This device supports the Apple "Made for iPod/iPhone" protocol.
USB Playback
This source unit supports playback from a USB device.
Built In Bluetooth®
Built In Bluetooth®
Made for Android
This device supports the Google "Made for Android" protocol.
ASTM B117 & D4329 Tested
ASTM B117 & D4329 Tested
IPX6 Water Intrusion Rating
Water projected in powerful jets from any direction shall have no harmful effects.
FLAC
The Free Lossless Audio Codec is an audio format similar to MP3, but lossless, meaning that audio is compressed in FLAC without any loss in quality.
Pandora®
Pandora® (also known as Pandora Internet Radio) is a music streaming and automated music recommendation service.
Element Ready™ | Source Units
All components are protected against harsh outdoor elements like Dust, UV, Temperature, Water, Corrosion & Vibration.
SPECIFICATIONS
|
FM TUNER
Sensitivity
|
8 dB
|
|
AM TUNER,
Frequency Range
|
530 kHz - 1710 kHz
|
|
AM TUNER
Usable Sensitivity |
40 dB
|
|
RCA Output Voltage
|
2V RMS
Does not clip at full output |
|
RCA Output Impedance
|
500Ω
|
|
Operating Voltage
|
10.5 V - 16 V
|
|
Speaker Impedance
|
2-Ohms
|
|
Fuse Rating
|
20 A
|
|
Dimensions (HxWxD)
|
Width 4.5" (11.5cm)
|
| Face Depth 1.5" (3.8cm) | |
| Mount Depth 2.9" (7.4cm) | |
| Height 4.2" (10.6cm) | |
|
USB Capacity
|
32Gb max
|
| 999 Folders max | |
| 999 Songs max | |
|
MEDIA PLAYER
|
MP3
|
| Audio Format Compatibility | WMA |
| FLAC | |
| TUNER |
N/A
|
|
Compatible Remotes
|
|
|
TUNER
|
(3 Remote Limit, 100 ft Total Wired Distance) |
|
Android Compatibility
|
Bluetooth® Only
|
|
Device Type
|
Digital-Media Receiver
|
| SPEAKER OUTPUTS |
Yes
|
|
Pandora® Internet Radio
|
Yes
|
|
Bluetooth®
|
Yes
3.0+EDR, A2DP 1.3 |
|
WB TUNER
Frequency Range |
162.40 - 162.55
(US & Canada) |
|
TUNER
Number Of Presets |
18 FM / 12 AM / 6 WB
|
|
Speaker Impedance
|
No
|
|
Apple®/Android™ Compatible
|
No
|
|
Steering Wheel Control Ready
|
No
|
|
Bluetooth®
|
No
|
|
Pandora® Internet Radio
|
No
|
|
Display Size
|
2.7"
|
|
Speaker Outputs
|
No
|
|
Power Output
|
No
|
|
Dimensions (HxWxD)
|
4.2" x 4.5" x 2.5"
106mm x 115mm x 64mm) Faceplate Protrudes: 1.5" (38mm) |
|
Clock
|
Yes
|
|
AUX Input
|
No
|
|
Remote Capacity
|
3 Remote Limit
100 ft Total Wired Distance |
|
Multi-Zone/Multi-Source
|
No
|
|
Device Type
|
Remote Control
|
|
SiriusXM-Ready®
|
No
|
|
USB Charging
|
No
|
|
Back Panel Cutout
|
3" (77mm)
|
|
USB Version
|
2
|
|
USB Charging
|
Yes
|
|
Steering Wheel Control Ready
|
No
|
|
Frequency Response
|
20 Hz - 20 kHz
|
|
Multi-Zone/Multi-Source
|
No
|
|
FM TUNER
Frequency Range |
87.5 MHz - 107.9 MHz
|
|
Power Output
|
CEA-2006 Power Rating
|
| 25W x 4 @ 4Ω RMS | |
| 50W x 4 @ 2Ω Peak | |
| ≤1.0% THD+N | |
|
Clock
|
No
|
|
Speaker Outputs
|
Yes (4-channel)
|
|
Made for iPod Models
|
iPod Touch (5th generation)
|
| iPod Touch (4th generation) | |
| iPod Nano (7th generation) | |
| iPod Nano (6th generation) | |
| RCA OUTPUTS |
(1 pr) Front
|
| (1 pr) Rear (or Sub-out) | |
|
Display Size
|
2.7" Color TFT
|
|
SiriusXM-Ready®
|
No
|
|
USB Output Current
|
1A
|
| FEATURES | |
|
Made for iPhone Models
|
iPhone XS (pending)
|
| iPhone XS Max | |
| iPhone XR (pending) | |
| iPhone X | |
|
|
iPhone 8 |
| iPhone 8 Plus | |
| iPhone 7 | |
| iPhone 7 Plus | |
| iPhone 6s | |
| iPhone 6s Plus | |
| iPhone 6 | |
| iPhone 6 Plus | |
| iPhone 5S | |
| iPhone 5C | |
| iPhone 5 | |
| iPhone 4 | |
| iPhone 4S | |
| Phone 3GS | |
|
Apple®/Android™ Compatible
|
Yes
|
| Limited functionality on Android. See owners manual. | |
|
AUX Input
|
Yes (1pr)
|
| GENERAL |
N/A
|
|
Back Panel Cutout
|
3" (77mm)
|
|
Shipping Weight
|
3 Lbs. (1.36 Kg)
|
