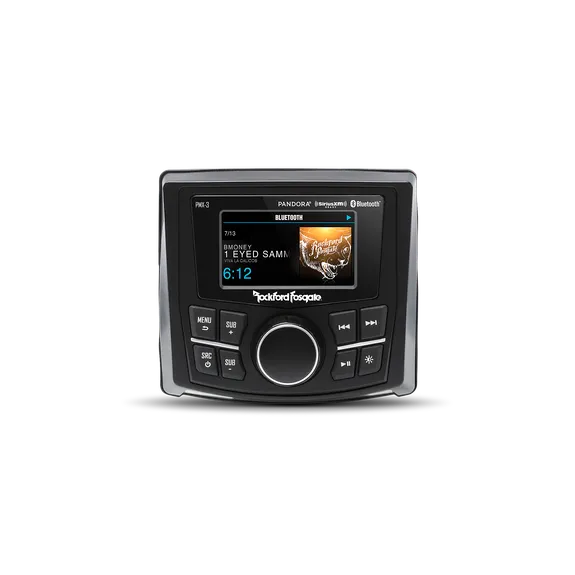

The PMX-3 compact digital media receiver, designed for marine and motorsports applications, features a 2.7"full color TFT display for optimum viewing even in full sun that is optically wet bonded to prevent any dust or moisture penetration.

The PMX-3 is IPX6 rated and uses a water resistant rotary encoder knob with white LED button illumination and front mounted sub level controls. Additionally, with features such SiriusXM tuner compatibility, Pandora control capabilities and Bluetooth audio steaming with album art support1, this unit becomes a true command center of any system. Output flexibility comes with a 4x50 @ 2ohm internal amplifier or front and rear/sub output RCA's allowing the addition of aftermarket amplifiers for more power and output. 1Android devices equipped with limited functionality. Please refer to owners manual for details.

We've also upgraded the unit to feature a reverse camera composite video input with reverse trigger control and a day/ night display mode for better viewing in low light conditions. Finally, add in the EEprom memory system, custom GUI interface and wired remote expansion capabilities and you have the only media receiver you'll ever need.

FEATURES AT A GLANCE

• 2.7" Full color Thin Film Transistor display
• SiriusXM-Ready™ (SXV300 module) with color channel logos (18 channel presets)
• Wired remote ready (up to 3 remotes)
• Two-piece mounting system to secure panel to mounting surface
• Upgradeable Firmware and Bluetooth Software via USB
• Internal power amplifier 4x45W 2Ω stable
• Automotive grade AM/FM Radio, Weatherband Radio digital tuner. Supports Radio Data System (RDS) to receive broadcast information
• IPX6 Marine Grade for prevention of water intrusion
• Rear AUX-In (L/R)
• ASTM: B117 Salt Fog & D4329 UV Exposure Tested
• Integrated voltage gauge w/ low voltage alert
• Electrically Erasable Programmable Read-Only Memory (EEPROM) is a type of non-volatile memory used in electronic devices to store data that must be saved when power is removed
• Front Panel Sub Control
• Bluetooth streaming audio (A2DP) protocol version 1.4 installed
• Licensed Pandora control (Apple direct USB or BT/Android via Bluetooth)
• Simple Secure Pairing (SSP)
• Rear USB With 1A Charging Only
• Made for iPhone apple certified
• Single Zone output with 2 channels front full range and 2 channels rear/ subwoofer selectable rated at 2 volt
• Selectable crossover slopes of 12dB or 24 dB for each zone
• Folder browsing via BT connected iPhones
• Display album art from connected iPhones on the radio display
• Selectable high pass and low pass crossover points for each zone
• Dedicated DSP audio processors for each zone with independent 7 Band EQ + Punch EQ
• Waterproof Rotary Encoder Volume Control
• Adjustable input gain for each source
• White LED Button Illumination
• Tactile convex buttons for easy identification
• Wired and front panel illumination control
• Wet Bonded Display
• Epoxy coated circuit board for water resistance
• Direct composite video input connection
• 2-Year Warranty
• External trigger input to activate reverse camera mode
• Day/Night display mode

SPECIFICATIONS
