PNW-57

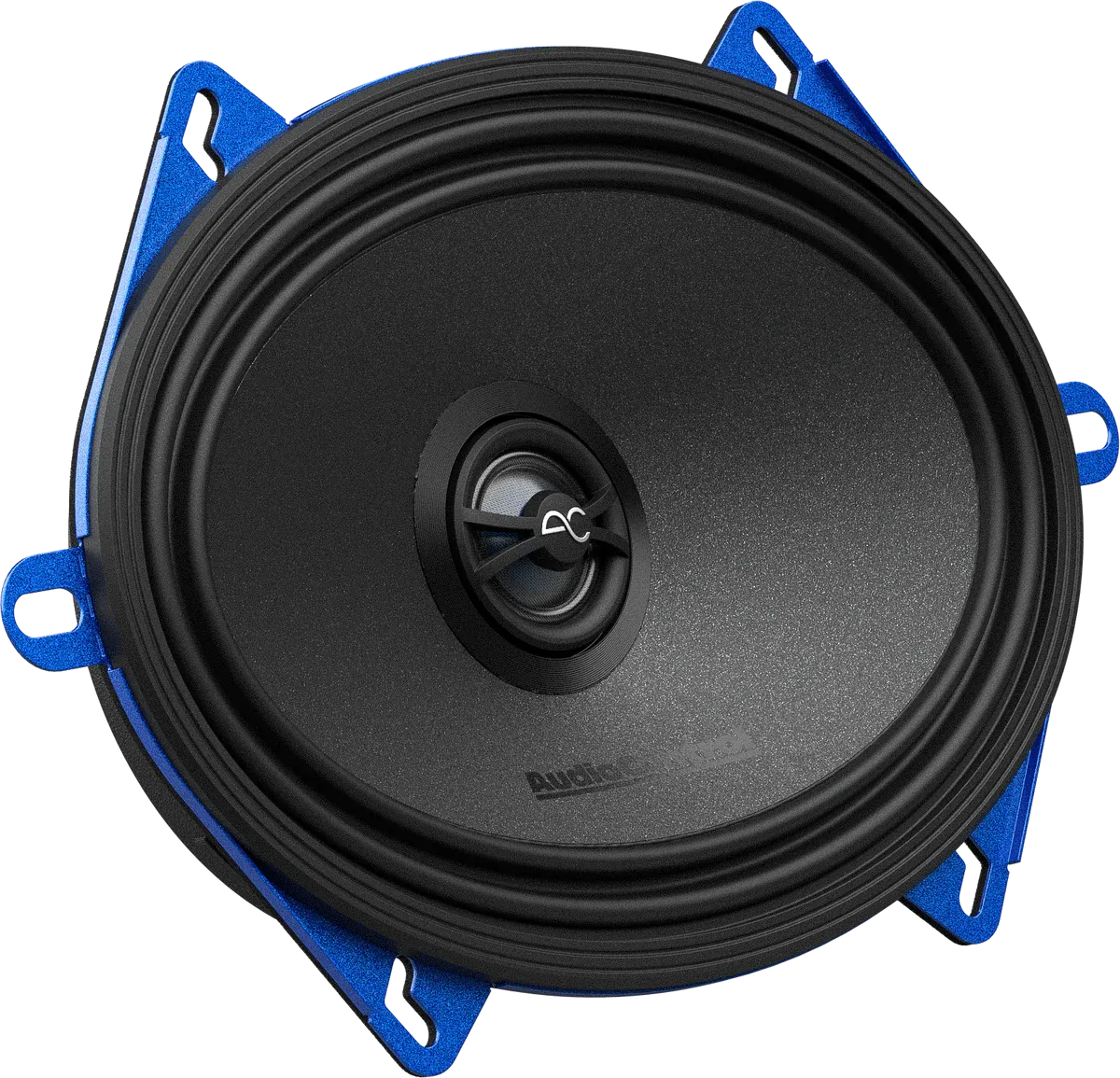

AudioControl PNW Series 5x7" 75 Watt (RMS) High-Fidelity Coaxial Speakers (Pair)
Features
- Edge-enhanced steel frame for added structural strength.
- Black anodized voice coil former for superior heat dissipation.
- Linear double-roll surround for precision cone movement.
- Complex FEA-designed high-efficiency motor.
- Rigid poly mica-coated cone for optimized sound reproduction.
- Rear dampened hybrid silk dome tweeter for extended frequency response.
- Concentric point source design for a seamless transition from midrange to tweeter.
- Sonic diffuser and radiant collar for better off-axis frequency response.
- High-quality mounting hardware included.
Description
Ready for a new level of auditory adventure? AudioControl's PNW Series 5 X 7” High-Fidelity Coaxial Speakers are here to take you on a wild ride! Combine them with AudioControl's legendary amplifiers for an immersive musical experience like never before. Made with an edge-enhanced steel frame, black anodized voice coil former, and linear double-roll surround, the PNW line ensures optimal sound reproduction. But that's not all - the rigid poly mica-coated cone takes it up a notch! Worried about installation? Fret not! This speaker set comes with high-quality mounting hardware for a hassle-free setup. And with the tweeter's point source design, both drivers align perfectly for better speaker alignment and exceptional sound quality every time you drive.
WHAT'S IN THE BOX
- (2) 5 X 7” High-Fidelity Coaxial Speakers
- User Guide
- Mounting Diagram
SPECIFICATIONS
Audio
| Crossover Type | Butterworth |
| DC Resistance (Re) | 2.3 ohms |
| Filter Type | HP |
| System Frequency (Fs) Response | 60-20k Hz |
| XO Frequency | 5250 Hz |
| Slope (Octave) | -6 dB |
| Tweeter Voice Coil Diameter | 20 mm |
| Midrange Voice Coil Diameter | 35 mm |
Dimensions
| Overall Diameter | 5.5 x 8.73 in / 140.6 x 221.9 mm |
| Cut Out Diameter | 4.64 x 6.96 in / 118 x 177 mm |
| Mounting Depth | 2.24 in / 57 mm |
| Height | 0.22 in / 5.6 mm |
| Motor Diameter (w/ Cover) | 4.17 in / 106 mm |
