PNW-69CS2

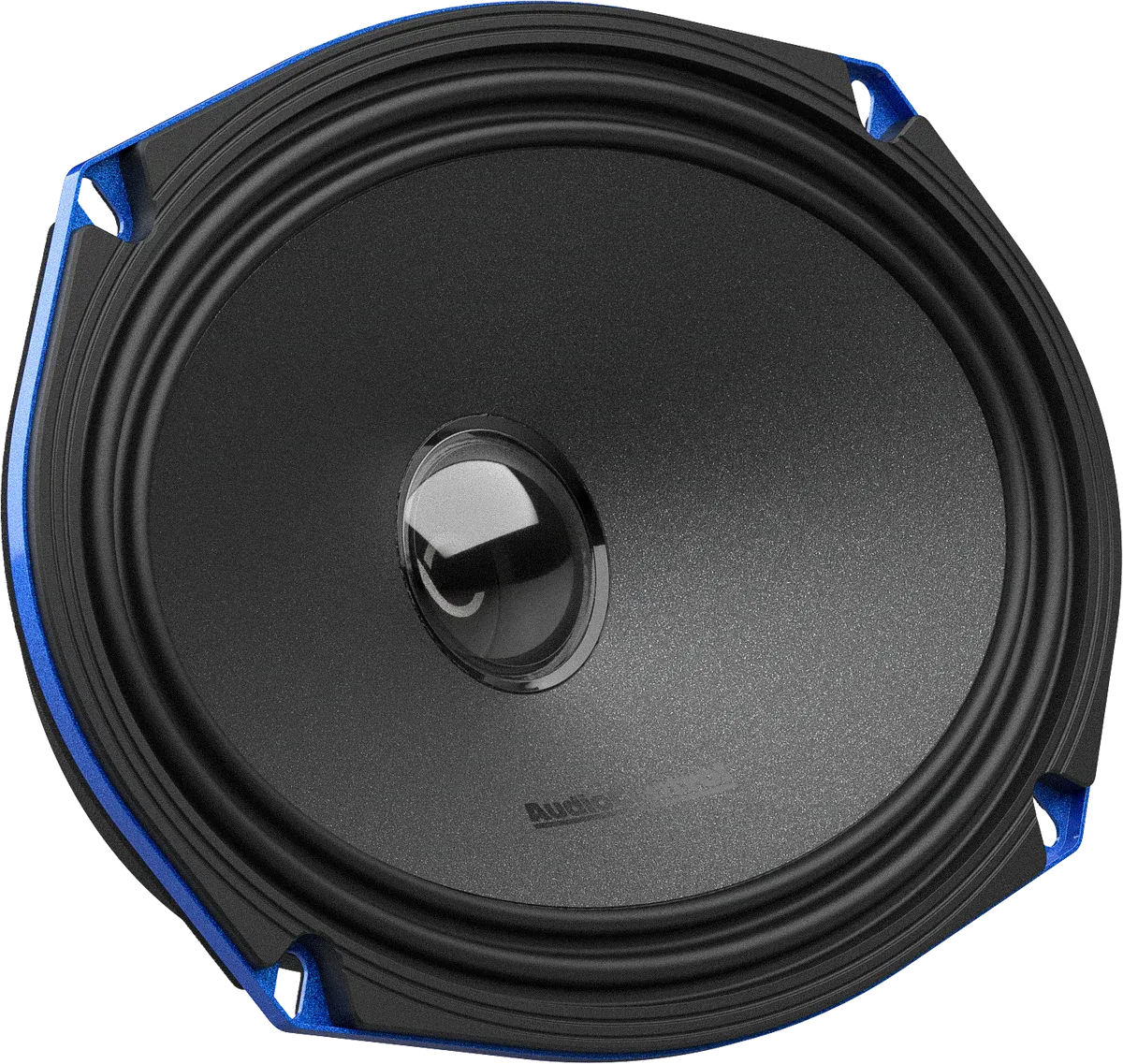

AudioControl PNW Series 6x9" 100 Watt (RMS) High-Fidelity Component Speakers (Pair)
Features
- Edge-Enhanced Steel Frame for Added Structural Strength.
- Black Anodized Voice Coil Former for Superior Heat Dissipation.
- Linear Double-Roll Surround for Precision Cone Movement.
- Complex FEA designed high efficiency motor.
- Rigid Poly Mica-Coated Cone for Optimized Sound Reproduction.
- Rear dampened hybrid silk dome tweeter for extended frequency response.
- High-Quality Mounting Hardware Included.
Description
Upgrade your in-car audio experience today with AudioControl's PNW Series 6 x 9" High-Fidelity Component Speakers. Designed to deliver premium sound quality and unmatched performance, these speakers will transform your driving experience. These speakers produce crystal-clear audio with features like an edge-enhanced steel frame for durability, a linear double-roll surround for precise cone movement, and a rear-dampened hybrid silk dome tweeter for extended frequency response and exceptional clarity. Installation with high-quality mounting hardware is a breeze, ensuring a seamless fit into any car. Boost your car's sound system and enjoy immersive, high-fidelity sound on the road with AudioControl's PNW Series 6 x 9" High-Fidelity Component Speakers.
WHAT'S IN THE BOX
- (2) 6 x 9″ High-Fidelity Component Speakers
- (2) Tweeters
- PNW-HF1 High pass crossover network
- PNW-LF1 Low pass crossover network
- User Guide
- Mounting Diagram
SPECIFICATIONS
Audio
| Crossover Type | 2nd order Linkwitz-Riley |
| DC Resistance (Re) | 2.6 ohms |
| Filter Type | HP / LP |
| System Frequency (Fs) Response | 50-20k Hz |
| XO Frequency | 3.5kHz HP / LP |
| Slope (Octave) | -12 dB |
| Tweeter Voice Coil Diameter | 20 mm |
| Midrange Voice Coil Diameter | 35 mm |
Dimensions
| Overall Dimensions | 6 x 9 in / 167 x 235 mm |
| Overall Diameter(w/o Metal bracket) | 7.2 x 10.43 in / 183 x 265 mm |
| Cut Out Diameter | 5.74 x 8.34 in / 146 x 212 mm |
| Mounting Depth | 2.95 in / 75 mm |
| Mounting Height (w/o Grille) | 0.24 in / 6.3 mm |
| Mounting Height (w/ Grille) | 0.98 in / 25 mm |
| Motor Diameter (w/ Cover) | 4.6 in / 117 mm |
Tweeter Dimensions
| Overall Diameter (G) | 2.13 in / 54 mm |
| Cut Out Diameter (H) | 1.85 in / 47 mm |
| Mounting Depth | 0.63 in / 16 mm |
