Prime 200 Watt 2-Channel Amplifier

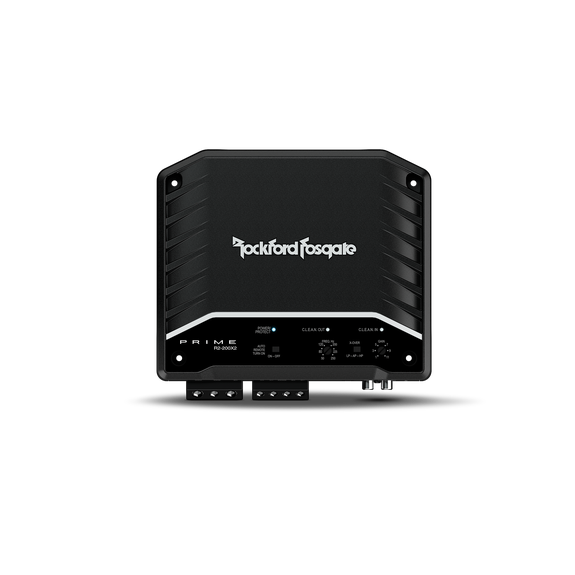

R2-200X2
Primed for Performance, the R2-200X2 is a 200 watt, full-range Class-D amplifier capable of operating at 4Ω or 2Ω stereo and 4Ω bridged/mono. This amplifier is extremely efficient because of its Class-D technology which reduces demand on the vehicles electrical system. The amp also features C.L.E.A.N. circuitry to help you adjust your gain settings, a P.O.W.E.R. supply that generates more power as voltage increases.
The R2 models are developed for car audio fanatics that want a reliable amplifier – with all the power and performance you’ve come to expect from Rockford Fosgate – at an economical price. Rockford Fosgate amplifiers are renowned world-wide for being “under rated,” easily surpassing all specifications, and most importantly, generating more power than their ratings. These 3rd generation of Prime Series amplifiers are refined with the latest Rockford Fosgate technology for easy setup and configuration, making them perfect for use with factory audio or custom aftermarket systems.
FEATURES AT A GLANCE
- Balanced Differential Inputs with RCA Pass Through Outputs
- Variable Input Gain adjustment level
- Auto-Sense bypass switch for vehicles with RAP (Retained Accessory Power)
- High Level Input Capable
- Features C.L.E.A.N. Set-up
- Fully Adjustable 12 dB/octave High and Low pass Butterworth Crossovers
- Full Range Class-D
- CEA-2006 Compliant & CE Compliant
- 1 Year Warranty
- Top Mounted Control Panel
- Short Circuit & Over Current Protection
- Cast aluminum heat sink
SPECIFICATIONS
|
Cta-2006 Compliant
|
Remote Controls
|
No
|
|
|
Number of Channels
|
2
|
Visual Indicators
|
POWER (Blue) / PROTECT (Red)
C.L.E.A.N. IN (Red) C.L.E.A.N. OUT (Blue/Red) |
|
Total Power
(Sum of Rated Power) |
200 Watts |
PC5:D17ower Wire Gauge
|
4 AWG
|
|
Rated Power
(RMS Continuous Power) |
50 Watts x 2 @ 4Ω
100 Watts x 2 @ 2Ω 200 Watts x 1 @ 4Ω Bridged/Mono |
Power Input Connector
|
Compression Terminal Block
|
|
Dynamic Power
(PVC/PowerCube®) |
60 Watts x 2 @ 4Ω
107 Watts x 2 @ 2Ω 215 Watts x 1 @ 4Ω Bridged/Mono |
Speaker Wire Gauge
|
8 AWG to 18 AWG
|
|
Bridgeable
|
Yes
|
Speaker Output Connector
|
Compression Terminal Block
|
|
Frequency Response
|
20 Hz - 20 kHz
|
Cooling
|
Convection
|
|
Input Sensitivity
|
Low-Level: 150 mV - 4 V
High-Level: 450 mV - 12 V |
Heatsink
|
|
|
Circuit Topology Class
|
Class-D
|
Operating Voltage
|
9 - 16 VDC
|
|
Efficiency (average)
|
Recommended Fuse (not included)
|
30 A
|
|
|
Total Harmonic Distortion (THD+Noise)
|
4Ω: <1.0%
2Ω: <1.0% |
Average Current Draw (13.8V Music)
|
|
|
Signal Input
|
Low-Level: 2 RCA
High-Level: 4-Pin Molex |
Max. Current Draw (13.8V Sinewave)
|
18 A |
|
Signal Output
|
Low-Level: 2 RCA
(Pass-Thru active with RCA or Hi-Level input) |
Suggested Alternator
|
|
|
Tone Controls
|
No
|
Included In The Box
|
|
|
Crossover Controls
|
High-Pass:
50 Hz - 250 Hz @ 12dB/Octave Butterworth Low-Pass: 50 Hz - 250 Hz @ 12dB/Octave Butterworth All-Pass: Yes |
Dimensions (H x W x D)
|
1.9" x 6.8" x 8.1"
(4.9 cm x 17.3 cm x 20.5 cm) |
|
Shipping Weight
|
