Package Contains:

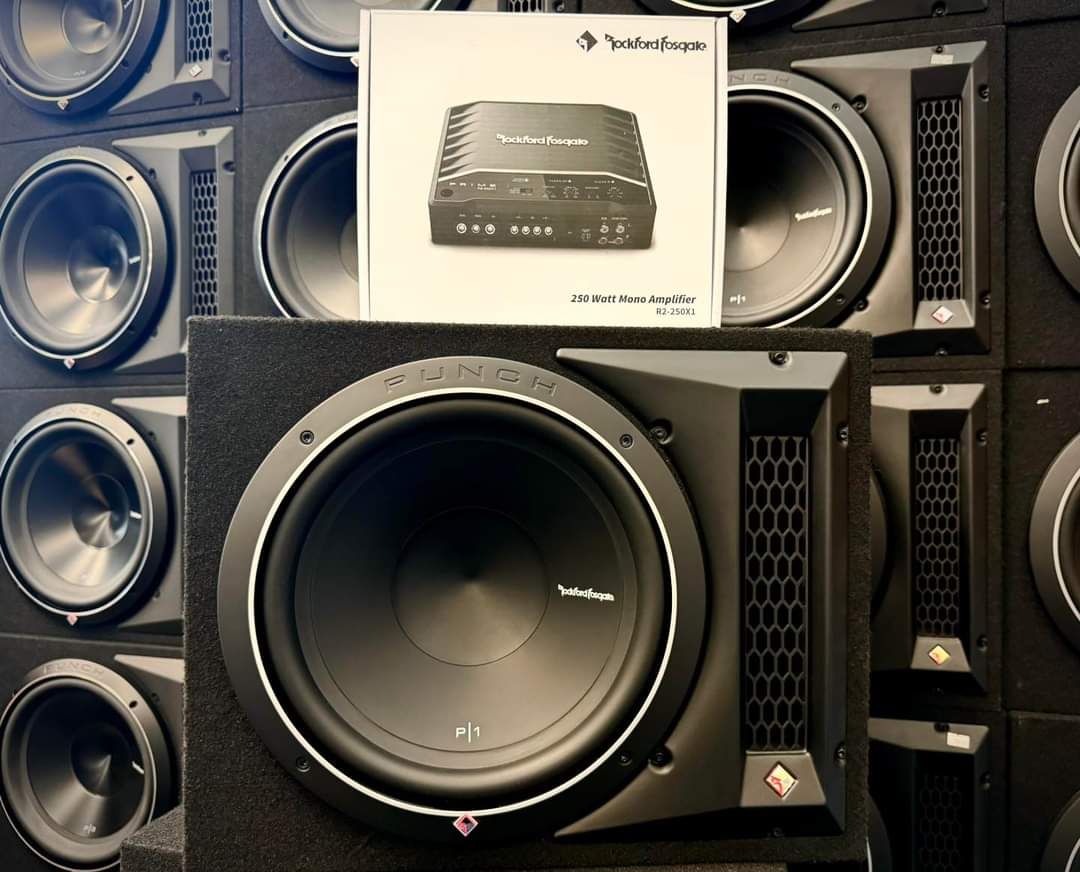

Punch Single P1 12" Loaded Enclosure
The P1-1X12 is a single P1 12” vented enclosure with 250 Watts RMS power handling wired to a 4-Ohm load. The enclosure is constructed with 5/8” MDF, covered in high density carpet, and features quick release compression terminals.
The most convenient way to get low frequency bass in your system is to drop-in a Punch Loaded enclosure. We're not talking junk in the trunk, we're talking the same genuine Punch woofers available separately. Punch Loaded enclosures are constructed with durable 5/8" MDF and tuned by our computer aided design software. P1 Loaded Enclosures feature similar tonal performance as P2/P3 models, but are easier to move in-n-out of vehicles due to their lighter weight.
FEATURES AT A GLANCE
- Proprietary high-flow, low-noise port
- Constructed with 5/8" MDF
- 1 Year Warranty
- High current binding posts
SPECIFICATIONS
| Enclosure Type | Vented | Nominal Impedance (ea) | 4-Ohm Internally wired to create a 4-Ohm amplifier load |
| Woofer Quantity | 1 | Power Handling (Watts RMS) | 250 Watts RMS 500 Watts Max |
| Woofer Size | 12" | Enclosure Material | 5/8" MDF (Medium Density Fiberboard) |
| Shipping Weight | 46.1 Lbs. (20.91 kg) | Dimensions Box (H x W x D) Wedge (H x W x D1 x D2) |
15.125" x 19.125" x 15.75" (38.4cm x 48.6cm x 40cm) |
| Speaker Connector | Up to 10 AWG compression terminals | CEA-2031 Compliant | CEA-2031 Guidelines |
| Woofer Series | Punch P1 (P1S4-12) |
Prime 250 Watt Mono Amplifier
R2-250X1
Primed for Performance, the R2-250X1 is a 250 watt, Class-D amplifier, capable of operating at 4Ω or 2Ω mono. This amplifier is extremely efficient because of its Class-D technology which reduces demand on the vehicles electrical system. The amp also features C.L.E.A.N. circuitry to help you adjust your gain settings, a P.O.W.E.R. supply that generates more power as voltage increases, and integrated Punch EQ that corrects for acoustic deficiencies while delivering up to 3X the bass. Perfect for subwoofers, a variable infrasonic filter and remote level control allows you to tune the bass for the desired level for the music.
The R2 models are developed for car audio fanatics that want a reliable amplifier – with all the power and performance you’ve come to expect from Rockford Fosgate – at an economical price. Rockford Fosgate amplifiers are renowned world-wide for being “under rated,” easily surpassing all specifications, and most importantly, generating more power than their ratings. These 3rd generation of Prime Series amplifiers are refined with the latest Rockford Fosgate technology for easy setup and configuration, making them perfect for use with factory audio or custom aftermarket systems.
FEATURES AT A GLANCE
- Variable Input Gain adjustment level
- Auto-Sense bypass switch for vehicles with RAP (Retained Accessory Power)
- High Level Input Capable
- Balanced Differential Inputs with RCA Pass Through Outputs
- Features C.L.E.A.N. Set-up
- Class-D Topology
- Variable Infrasonic Filter
- 1 Year Warranty
- CEA-2006 Compliant & CE Compliant
- Continuously Variable On Board Punch EQ
- Top Mounted Control Panel
- Short Circuit & Over Current Protection
- Rollback Protection
- Fully Adjustable 12 dB/octave High and Low pass Butterworth Crossovers
- Includes RLC Remote Level Control
- Cast aluminum heat sink
SPECIFICATIONS
|
Cta-2006 Compliant
|
Remote Controls
|
Yes | |
|
Number of Channels
|
1 |
Visual Indicators
|
POWER (Blue) / PROTECT (Red) C.L.E.A.N. IN (Red) C.L.E.A.N. OUT (Blue/Red) |
|
Total Power
(Sum of Rated Power) |
250 Watts |
Power Wire Gauge
|
4 AWG |
|
Rated Power
(RMS Continuous Power) |
150 Watts x 1 @ 4Ω 250 Watts x 1 @ 2Ω |
Power Input Connector
|
Compression Terminal Block |
|
Dynamic Power
(PVC/PowerCube®) |
209 Watts x 1 @ 4Ω 328 Watts x 1 @ 2Ω |
Speaker Wire Gauge
|
8 AWG |
|
Bridgeable
|
No |
Speaker Output Connector
|
Compression Terminal Block |
|
Frequency Response
|
20 Hz - 250 Hz |
Cooling
|
Convection |
|
Input Sensitivity
|
Low-Level: 150 mV - 4 V High-Level: 450 mV - 12 V |
Heatsink
|
|
|
Circuit Topology Class
|
Class-D |
Operating Voltage
|
9 - 16 VDC |
|
Efficiency (average)
|
Recommended Fuse (not included)
|
50 A | |
|
Total Harmonic Distortion (THD+Noise)
|
4Ω: <1.0% 2Ω: <1.0% |
Average Current Draw (13.8V Music)
|
|
|
Signal Input
|
Low-Level: 2 RCA High-Level: 4-Pin Molex |
Max. Current Draw (13.8V Sinewave)
|
30 V |
|
Signal Output
|
Low-Level: 2 RCA (Pass-Thru active with RCA or Hi-Level input) |
Suggested Alternator
|
|
|
Tone Controls
|
0 to +18 dB @ 45 Hz |
Included In The Box
|
|
|
Crossover Controls
|
Low-Pass: 50 Hz - 250 Hz @ 12dB/Octave Butterworth Infrasonic: 15 Hz - 40 Hz @ 12dB/Octave Butterworth |
Dimensions (H x W x D)
|
1.9" x 6.8" x 8.1" (4.9 cm x 17.3 cm x 20.5 cm) |
|
Shipping Weight
|
