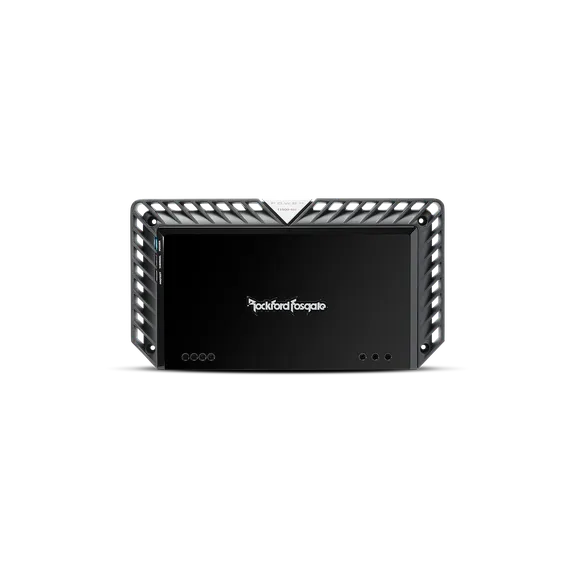

Power 1,500 Watt Class-bd Constant Power Amplifier
T1500-1bdCP
The Power T1500-1bdCP is a 1,500 Watt mono amplifier featuring Constant Power delivering up to 25% more power across all impedance loads. The frequency response of the T1500-1bdCP is optimized exclusively for use with subwoofers in cars and trucks.
The new Constant Power amplifiers are the most powerful amplifiers on the market PERIOD! The T1500-1bdCP is an amplifier for subwoofers based on the legendary T1500-1bd amplifier design with a proprietary "Constant Power" configuration delivering up to 25% more power (Watts) across all impedance loads. The listening experience is cleaner, louder and more impressive than ever before. At 1,500 watts, this monster will run any demo vehicle competing in Sound Pressure Level.
Looking for more options? Check out all of our mobile power amps.
FEATURES AT A GLANCE
- MOSFET output stage
- Audiophile grade speaker connections
- 4 Gauge power/ground connectors
- 24dB/octave crossover
- Infrasonic filter
- MOSFET power supply
- RCA pass-thru outputs
- 2-Year Warranty
SPECIFICATIONS
| Cta-2006 Compliant | Remote Controls | Optional Remote Punch Bass EQ (overrides built-in Punch Bass EQ) |
|
| Number of Channels | 1 | Visual Indicators | Power Thermal Protect |
| Total Power (Sum of Rated Power) |
1500 Watts RMS | Power Wire Gauge | 4 AWG |
| Rated Power (RMS Continuous Power) |
1000 Watts x 1 @ 4-Ohm 1500 Watts x 1 @ 2-Ohm 1500 Watts x 1 @ 1-Ohm |
Power Input Connector | Block |
| Dynamic Power (PVC/PowerCube®) |
1045 Watts x 1 @ 4-Ohms 1549 Watts x 1 @ 2-Ohms 1715 Watts x 1 @ 1-Ohm |
Speaker Wire Gauge | 8 AWG to 18 AWG |
| Bridgeable | No | Speaker Output Connector | Screw terminal barrier strip |
| Frequency Response | 20Hz to 250Hz +/- 0.5dB | Cooling | Convection |
| Input Sensitivity | 150 mV to 4 V | Heatsink | |
| Circuit Topology Class | Class BD | Operating Voltage | 9 - 16 VDC |
| Efficiency (average) | 86.2% @ 4-Ohm 74.6% @ 2-Ohm 63.0% @ 1-Ohm |
Recommended Fuse (not included) |
200 A |
| Total Harmonic Distortion (THD+Noise) |
4-Ohm: <1.0% 2-Ohm: <1.0% 1-Ohm: <1.0% |
Average Current Draw (13.8V Music) | 100 A |
| Signal Input | Low level: 1 RCA pair | Max. Current Draw (13.8V Sinewave) | 200 A |
| Signal Output | Low level: 1 RCA pair | Suggested Alternator | 100 A |
| Tone Controls | Bass: 0dB to +18dB @ 45Hz Infrasonic Filter: -3dB @ 28Hz 12dB/Octave |
Dimensions (H x W x D) | 2.14 x 8.14 x 14.91 (in) 5.42 x 20.68 x 37.86 (cm) |
| Crossover Controls | Low-Pass (LP): 35-250Hz 24dB/octave Butterworth | Shipping Weight | 14.35 Lbs. (6.50 Kg.) |
