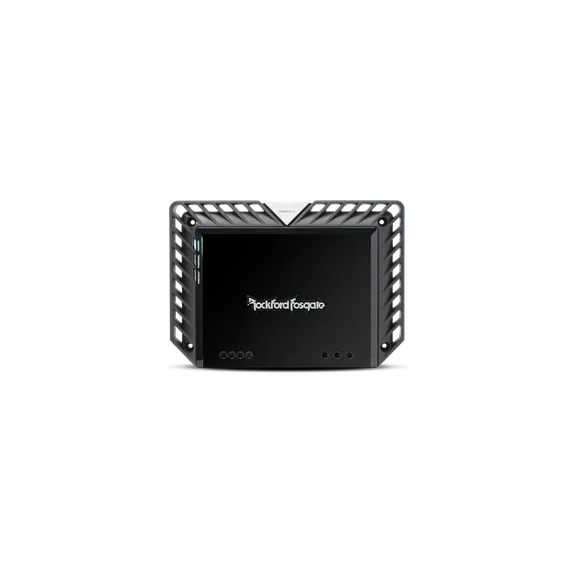

Power 500 Watt Class-bd Constant Power Amplifier
T500-1bdCP
The Power T500-1bdCP is a 500 Watt mono amplifier featuring Constant Power delivering up to 25% more power across all impedance loads. The frequency response of the T500-1bdCP is optimized exclusively for use with subwoofers.
The T500-1bdCP is based on the legendary T500-1bd amplifier design with a proprietary "Constant Power" configuration delivering up to 25% more power (Watts) across all impedance loads. The listening experience is cleaner, louder and more impressive than ever before. With the T500-1bdCP, you can now use an "under-the-seat" dedicated subwoofer amplifier to drive two 4-Ohm DVC subwoofers. This amp will provide enough bass to separate you from those envious car audio geeks.
FEATURES AT A GLANCE
- MOSFET output stage
- Audiophile grade speaker connections
- 24dB/octave crossover
- 4 Gauge power/ground connectors
- MOSFET power supply
- RCA pass-thru outputs
- Infrasonic filter
- 2-Year Warranty
SPECIFICATIONS
| Cta-2006 Compliant | Remote Controls | Optional Remote Punch Bass EQ (overrides built-in Punch Bass EQ) |
|
| Number of Channels | 1 | Visual Indicators | Power Thermal Protect |
| Total Power (Sum of Rated Power) |
500 Watts RMS | Power Wire Gauge | 4 AWG |
| Rated Power (RMS Continuous Power) |
300 Watts x 1 @ 4-Ohm 500 Watts x 1 @ 2-Ohm 500 Watts x 1 @ 1-Ohm |
Power Input Connector | Block |
| Dynamic Power (PVC/PowerCube®) |
328 Watts x 1 @ 4-Ohms 537 Watts x 1 @ 2-Ohms 707 Watts x 1 @ 1-Ohm |
Speaker Wire Gauge | 8 AWG to 18 AWG |
| Bridgeable | No | Speaker Output Connector | Screw terminal barrier strip |
| Frequency Response | 20Hz to 250Hz +/- 0.5dB | Cooling | Convection |
| Input Sensitivity | 150 mV to 4 V |
Heatsink | |
| Circuit Topology Class | Class BD | Operating Voltage | 9 - 16 VDC |
| Efficiency (average) | 86.2% @ 4-Ohm 82.3% @ 2-Ohm 73.4% @ 1-Ohm |
Recommended Fuse (not included) |
80 A |
| Total Harmonic Distortion (THD+Noise) |
4-Ohm: <1.0% 2-Ohm: <1.0% 1-Ohm: <1.0% |
Average Current Draw (13.8V Music) | 35 A |
| Signal Input | Low Level: 1 RCA pair | Max. Current Draw (13.8V Sinewave) | 70 A |
| Signal Output | Low Level: 1 RCA pair | Suggested Alternator | 75 A |
| Tone Controls | Bass: 0dB to +18dB @ 45Hz | Dimensions (H x W x D) | 2.14 x 8.14 x 11.41 (in) 5.42 x 20.68 x 28.97 (cm) |
| Crossover Controls | Low-Pass (LP): 35-250Hz 24dB/Octave Butterworth Infrasonic Filter: -3dB @ 28Hz 12dB/Octave |
Shipping Weight | 13.39 Lbs. (6.07 Kg.) |
