• 3,000W Max. 1,000W Nom. Power (Sub)
• 1,200W Max. 600W Nom. Power (Amp)
• Variable Bass Boost (0 to +12 dB, 40Hz to 100Hz)
• Dual Voice Coil
• Dimensions: 29-3/8" x 18-1/8" x 15-3/4"
• Remote Control Included

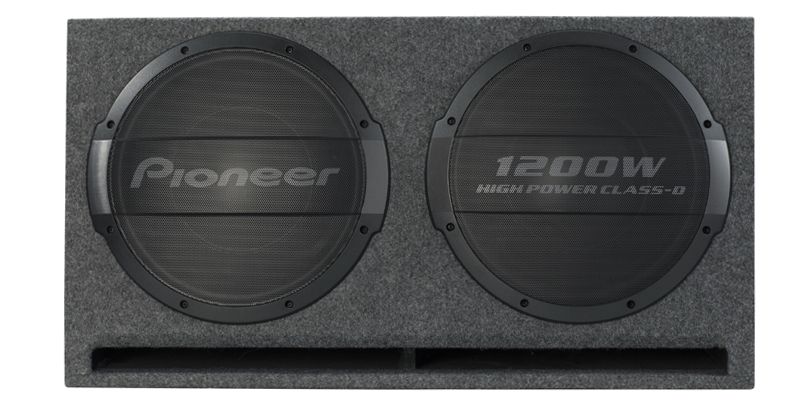

Boundary Loaded Bass-reflex Slot Port Design

The slot port is positioned on the bottom edge of the bass-reflex enclosure which maximizes the subwoofer system output SPL by boundary loading the combined output of the slot port and the subwoofer diaphragms. Powerful, deep and accurate bass response capable of reproducing a wide range of music genres such as hip hop, rock, pop, and country.

Powerful Amplified Subwoofer

Built with high bandwidth, high output and low distortion 1,200W Max. (600W Nom.) Power Class D amplifier mated to high sensitivity woofers specifically optimized for use in small, sealed enclosures.

Flexible sound adjustment

User adjustable controls include a LPF, phase control and variable bass boost (0 to +12 dB, 40Hz to 100Hz) providing enhanced control. To expand system flexibility and user control, input gain can be adjusted using the included wired remote bass control knob or via the input gain control mounted on the enclosure side panel.

In-Car Simulator

Pioneer’s CarSoundFit app is a car sound simulator for experiencing in-car sound with your own smartphone. Hear the difference between original car speakers and Pioneer audio upgrades and immerse yourself within the sound quality Pioneer can offer for your vehicle. For a virtual listening demonstration of these and many other Pioneer car speakers, download the free Pioneer CarSoundFit app.

What’s in the Box

• TS-WX1010LA Ported Active Enclosure Subwoofer
• 4 Mounting Brackets
• 2 (5 x14mm) screws
• 8 (M5 x 25mm) screws
• 1 Wired Remote Bass Controller Knob
• 1 10.5" RCA input harness (4-pin Molex plug/2 female RCAs)
• 2 40A ATO fuse in holder (installed on power wire)
• 1 Allen Key Wrench Tool
• Installation Manual
• Warranty Sheet

KEY FEATURES

• System Type: Powered
• Sensitivity (1W/1m): 92 dB
• Frequency Range: 20 Hz to 2.9 kHz
• CTA-2031 Compliant: Yes
• Warranty:1 Year
• Continuous Power handling (RMS) - Watts1000 Watts
• Maximum Peak Power Handling - Watts3000 Watts
• Speaker Grill: Fully Covered Steel Mesh Grille
• Bass Boost Frequency: 40Hz to 100Hz
• Bass Boost Level: 0 to +12 dB
• Built In Amp: Yes
• Amp Max Power Output: 1200 Watts
• Amp RMS Output: 600 Watts
• Input Level (@ Gain Max) RCA: 100 mV+100 mV/22 kOhm
• Input Level (@ Gain Max) Speaker Line: 2 V+2 V/5 kOhm
• Power Source: Dc 14.4 V
• Amp Max Current Consumption: 50 A
• Amp Grounding: Negative
