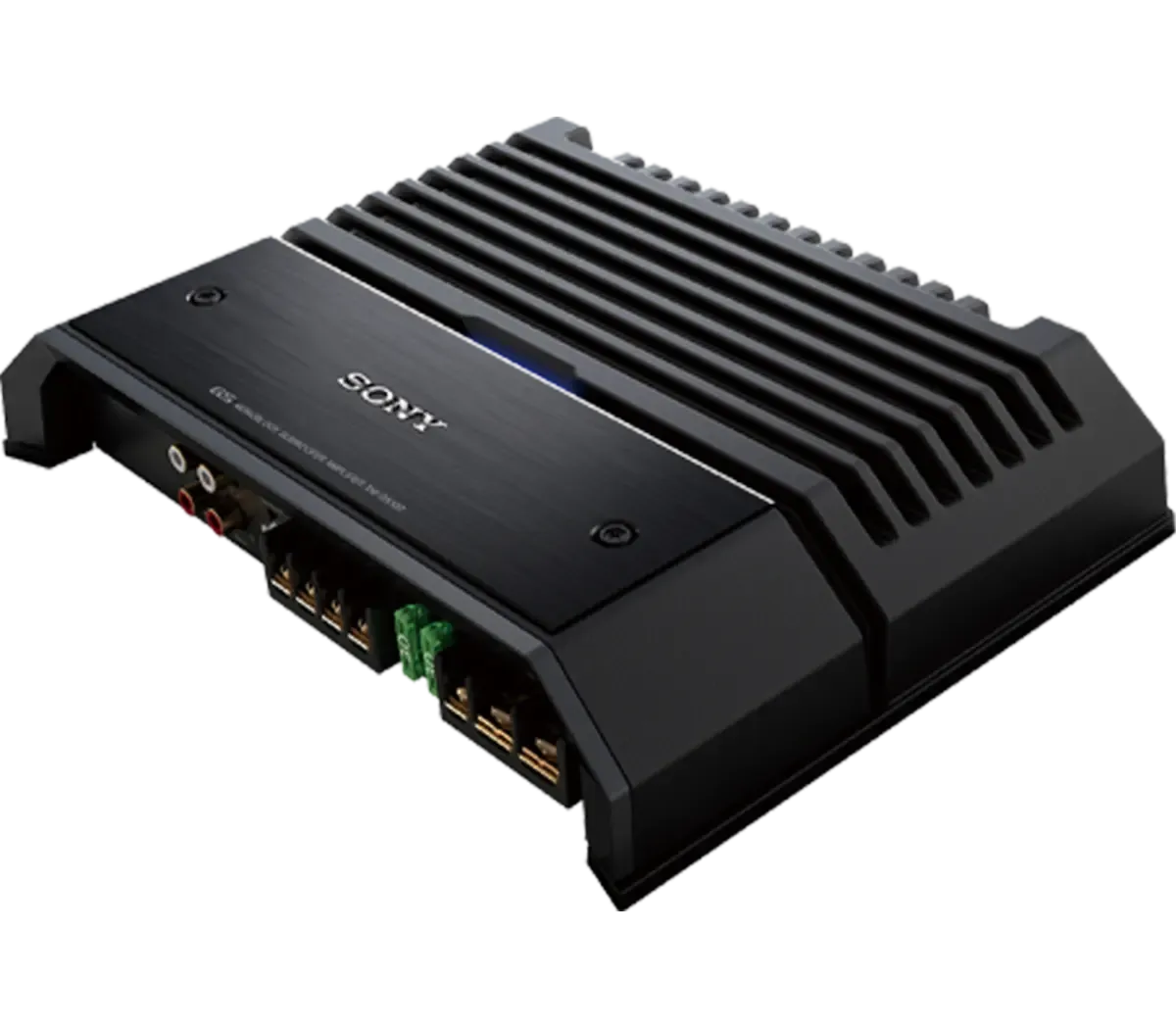

XM-GS100
Product Details
UPC:
027242823297
Brand:
SONY
Number of Channels:
MONO
RMS Power:
1000+ WATTS RMS
Monaural Class D Amplifier
- 330 W high power output
- 600 W (at 4 ohms), 1100 W x 1 (at 2 ohms)
- Active Thermal Control for stable playback
- Dynamic Distortion Suppressor for clear sound
- Low pass filter
SPECIFICATIONS
Amplifier
Channel Configuration:
Mono
Low Pass Filter
50-300 Hz
Low-Pass Filter Slope
12 dB/oct
Details
Bass Boost: Frequency (0 - 10 dB)
40 Hz
Current drain (A) - rated output power at 4 ohm
30A
Gold Plated Connectors
YES
Line In: Input Sensitivity
0.3–6
Line Out
YES (Through)
Load Capability (ohm)
NO/YES
MOSFET
YES
Speaker Level Input
YES
Subsonic High Pass Filter
YES
CTA Power output
330 W x 1
CTA SN Ratio
65 dBA
General Features
Frequency Response
10-300 Hz
Signal to Noise Ratio
100 dB
Tolerance
+0.5/-3 dB
Total Harmonic Distortion at 1 kHz (%)
0.1% (50 Hz)
Maximum Output Power (1 kHz)
Max. Channel Power Configuration at 2 ohms
1100 W x 1
Max. Channel Power Configuration at 4 ohm
600 W x 1
Rated Output Power, RMS 20 - 20000 Hz
Max. Channel Configuration at 2 ohm (W) / THD (%)
600 W x 1/1.0% (50 Hz)
Max. Channel Configuration at 4 ohm (W) / THD (%)
330 W x 1 / 1.0% (20-200 Hz)
Size & Weight
Dimensions (W x H x D)
2.01 x 10.71 x 7.95 in
Weight
5.51 lb
